SUPPLIED COMPONENTS AND ACCESSORIES

Position

Code

Description

Needs

1
940GHRSF
GHIERA ER40 STANDARD A SFERE DX
1

Direct purchase spare parts +

NUT ER40 WITH SPHERES RH

Log in or register for prices and availability

Typology
GHR - Nuts
DIN ISO
DIN6499
H
29
D
63
d
4-30
M
M50x1
Collet Type
ER40
Roration
DX
Weight (Kg)
0.23

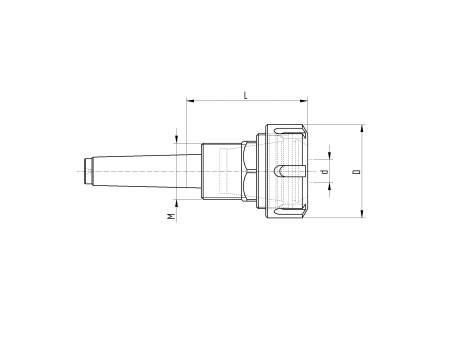

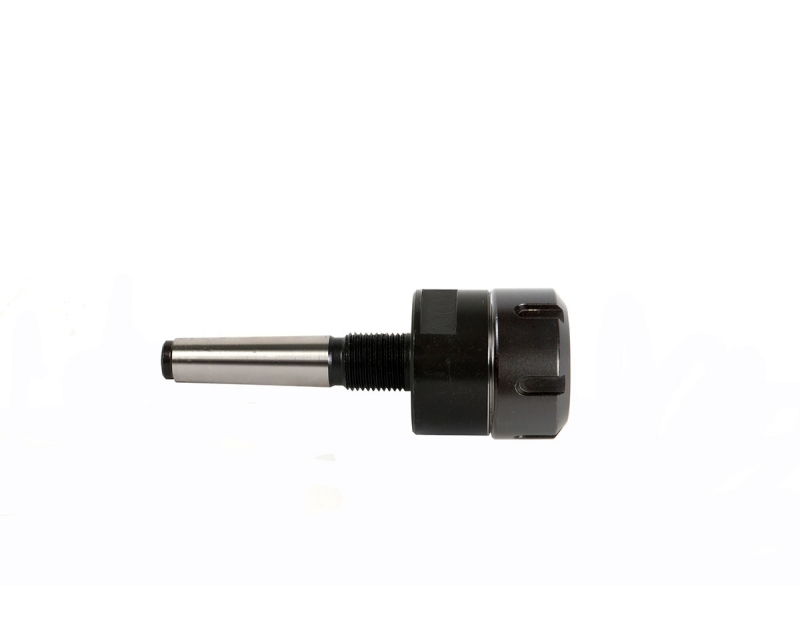

M02PSX26

CM2 COLLET CHUCK H93 ER40 LF THREAD M30X1,5

Mandrino Attacco Cono Morse 2 Porta Pinze ER40 - Completo di accessori

PRODUCT DETAILS

Data sheet

Taper: Attacco Cono Morse 2
Typology: PP - Collet Chucks
D: 63
d: 4-30
L: 93
M: M30x1
Collet Type: ER40
Roration: SX
Weight (Kg): 0.83
