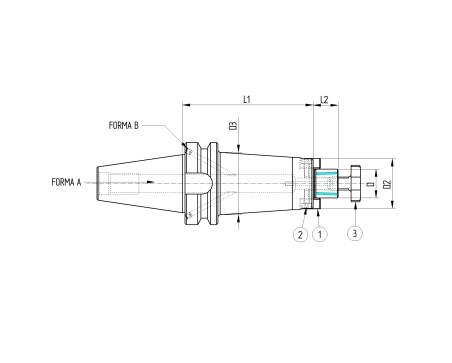

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 927TSL02
  • TASSELLO 12X12X15
  • 2
  • 2
  • 110401601
  • VITE 8.8 TCEI M4X16 BRUN. UNI5931 ISO4762 DIN912 A0502001
  • 2
  • 3
  • 927VTC02
  • VITE TESTA A CROCE M12x22
  • 1
Direct purchase spare parts +

340PF027

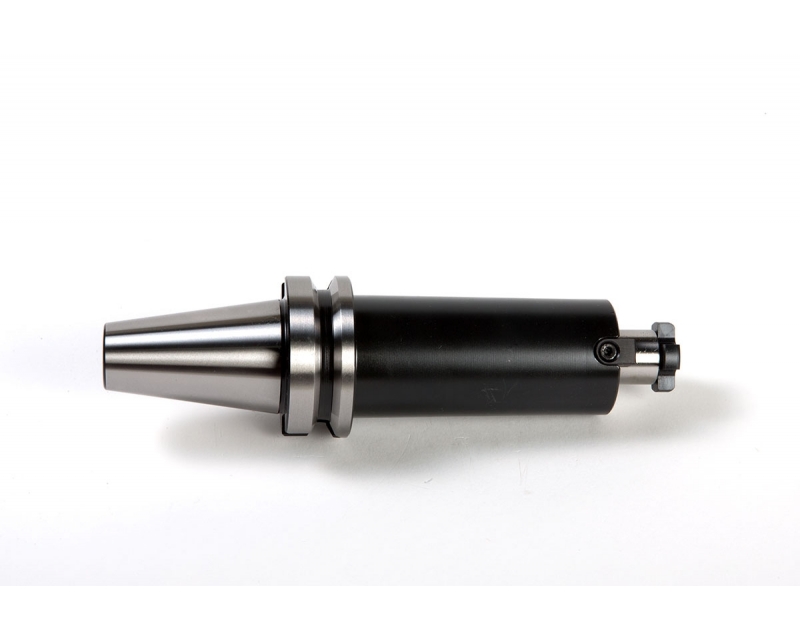

ISO40 MAS403BT SHELL MILL HOLDER H35 D.27 AD/B

Shell Mill Holders With Internal Coolant Supply - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO40
Typology
PF - Shell Mill Holders
DIN ISO
ISO3937
D
27
D2
58
L1
35
L2
21
Weight (Kg)
1.29
