SUPPLIED COMPONENTS AND ACCESSORIES

Position

Code

Description

Needs

1
925GHRMN
GHIERA ER25 MINI
1

2
101815801
GRANO M18X1,5X8 CH.5 PASSANTE
1

Direct purchase spare parts +

Log in or register for prices and availability

Typology
GHR - Nuts
DIN ISO
DIN 6499
D
35
L
20
M
M30x1
Collet Type
ER25MINI
Weight (Kg)
0.05

350PM416

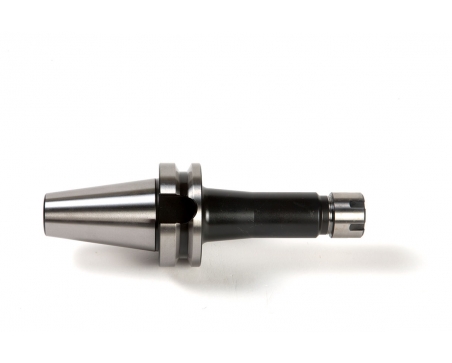

ISO50 MAS403BT COLLET CHUCK H160 ER25MINI AD/B

ER Mini Collet Chuck - Accessories included

PRODUCT DETAILS

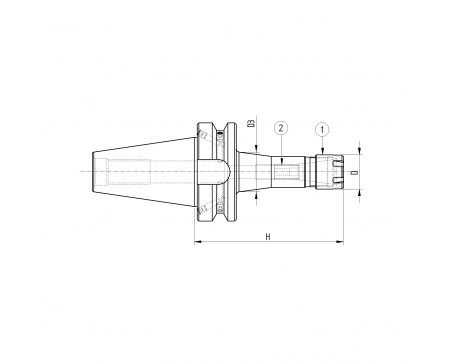

Data sheet

Taper: ISO50
Typology: PM - ER Mini Collet Chucks
DIN ISO: DIN6499
H: 160
D: 35
D3: 38
Collet Type: ER25MINI
Balancing: G6.3 12000
Weight (Kg): 4.06
