SUPPLIED COMPONENTS AND ACCESSORIES
Position
Code
Description
Needs
- 1
- 932TSL11
- TASSELLO 14X15X21
- 2
- 2
- 110602001
- VITE 12.9 TCEI M6X20 BRUN. UNI5931 ISO4762 DIN912
- 2
- 3
- 932VTC02
- VITE TESTA A CROCE M16x26
- 1

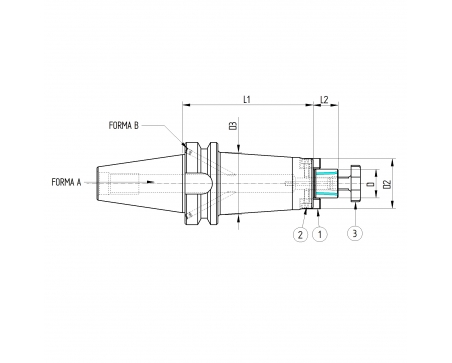

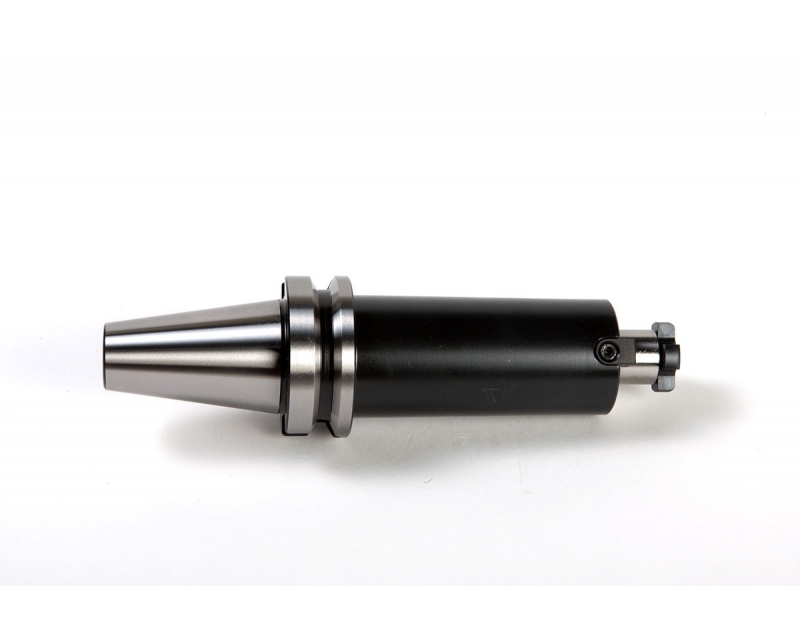

340PF532
ISO40 MAS403BT SHELL MILL HOLDER H200 D.32 AD/B
Shell Mill Holders With Internal Coolant Supply - Accessories included
Data sheet
- Taper
- ISO40
- Typology
- PF - Shell Mill Holders
- DIN ISO
- ISO3937
- D
- 32
- D2
- 66
- D3
- 60
- L1
- 200
- L2
- 24
- Weight (Kg)
- 4.87
Shell Mill Holders With Internal Coolant Supply - Accessories included
