SUPPLIED COMPONENTS AND ACCESSORIES
Position
Code
Description
Needs
- 1
- 101001202
- GRANO P. COPPA M10X12 BRUNITO DIN916 ISO4029 UNI5929 15929010012B
- 1
- 2
- 100601601
- GRANO M6X16 BRUNITO FORATO A DISEGNO D.3
- 1

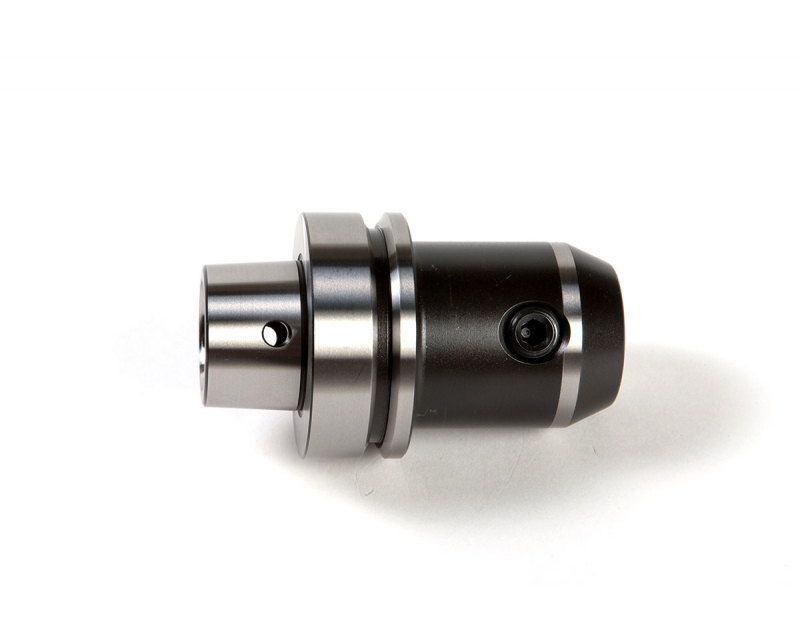

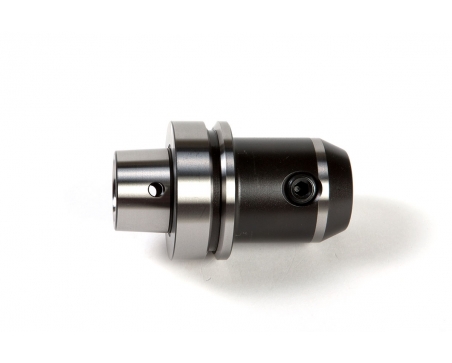

65FWHN10
HSK50/F DIN69893 W/NOTCH TYPE H80 D10
End Mill Holders Whistle Notch Type - Accessories included
Data sheet

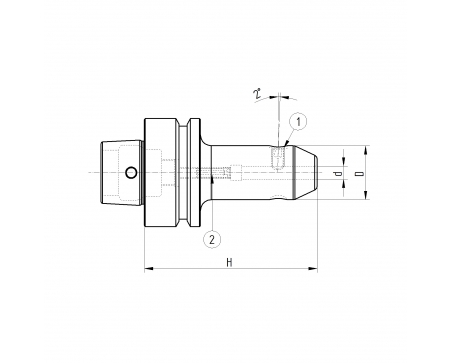

- Taper
- HSK50/F
- Typology
- WHN - Whistle Notch (Short)
- DIN ISO
- DIN1835E
- H
- 80
- D
- 35
- d
- 10
- Balancing
- G2.5 20000
- Weight (Kg)
- 0.71
End Mill Holders Whistle Notch Type - Accessories included
