SUPPLIED COMPONENTS AND ACCESSORIES

Position

Code

Description

Needs

1
911GHRMN
GHIERA ER11 MINI
1

2
100601004
GRANO P.PIANA M6X10 BRUNITO UNI5923 ISO4026 DIN913 A0501009
1

Direct purchase spare parts +

Log in or register for prices and availability

Typology
GHR - Nuts
DIN ISO
DIN 6499
D
16
L
12
M
M13x0
Collet Type
ER11MINI
Weight (Kg)
0.01

65EPM407

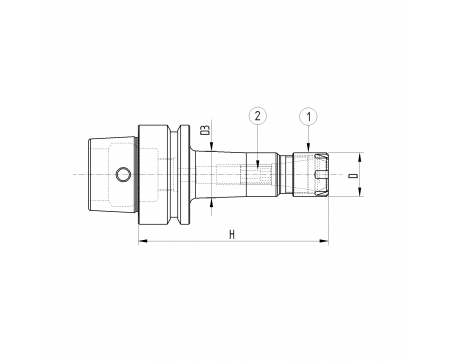

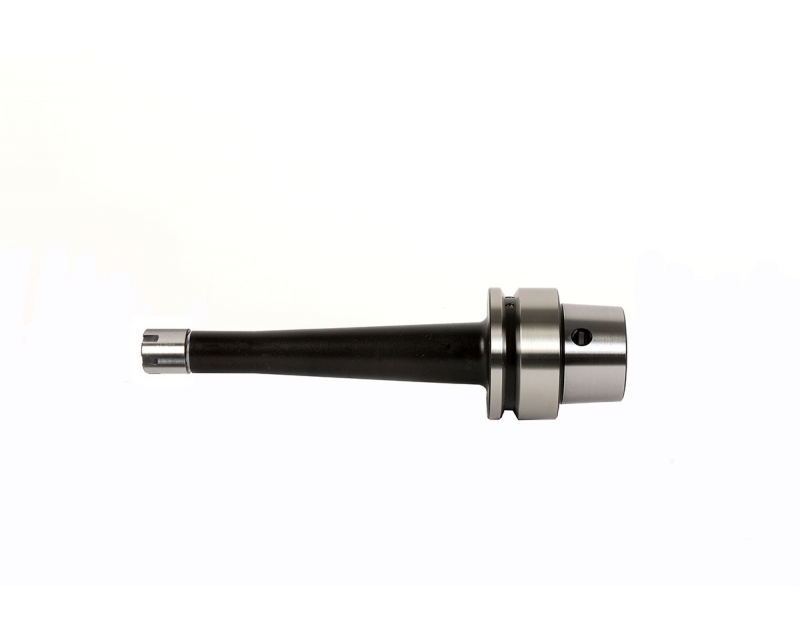

HSK50/E DIN69893 COLLET CHUCK H160 ER11MINI

ER Mini Collet Chuck - Accessories included

PRODUCT DETAILS

Data sheet

Taper: HSK50/E
Typology: PM - ER Mini Collet Chucks
DIN ISO: DIN6499
H: 160
D: 16
D3: 24
Collet Type: ER11MINI
Balancing: G2.5 20000
Weight (Kg): 0.71
