SUPPLIED COMPONENTS AND ACCESSORIES

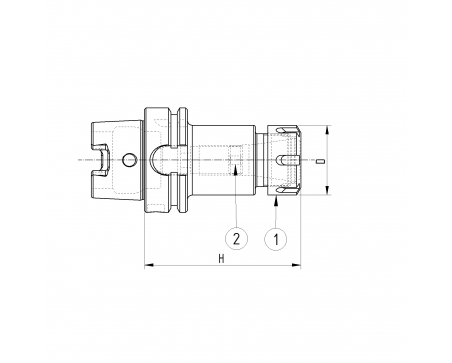

Position
Code
Description
Needs
  • 1
  • 925GHREQ
  • GHIERA ER25 BILANCIATA STANDARD
  • 1
  • 2
  • 101815801
  • GRANO M18X1,5X8 CH.5 PASSANTE
  • 1
Direct purchase spare parts +

66APP116

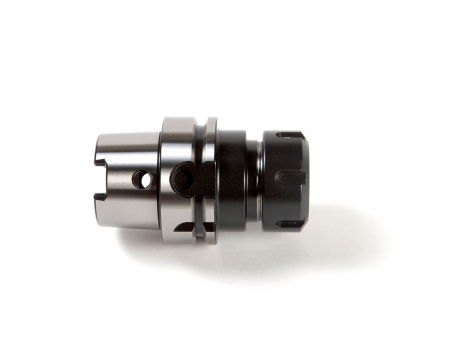

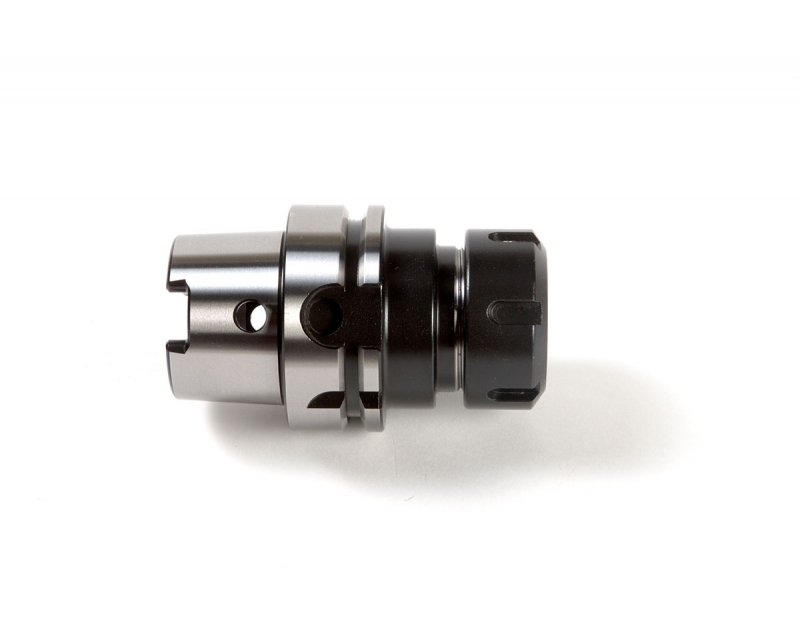

HSK63/A DIN69893 COLLET CHUCK H75 ER25

ER Collet Chuck - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
HSK63/A
Typology
PP - Collet Chucks
DIN ISO
DIN6499
H
75
D
42
Collet Type
ER25
Balancing
G6.3 15000
Weight (Kg)
1.01
