SUPPLIED COMPONENTS AND ACCESSORIES

Position

Code

Description

Needs

1
940GHREQ
GHIERA ER40 BILANCIATA STANDARD
1

Direct purchase spare parts +

ER40 STANDARD NUT

Log in or register for prices and availability

Typology
GHR - Nuts
DIN ISO
DIN 6499
D
63
L
25
M
M50x1
Collet Type
ER40
Weight (Kg)
0.26

66APP126

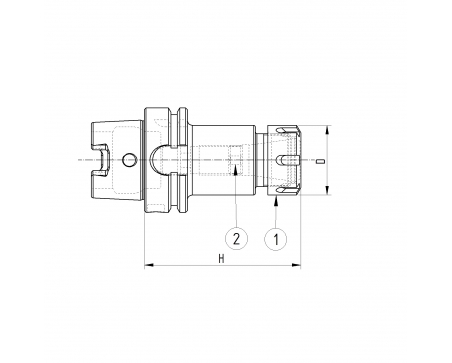

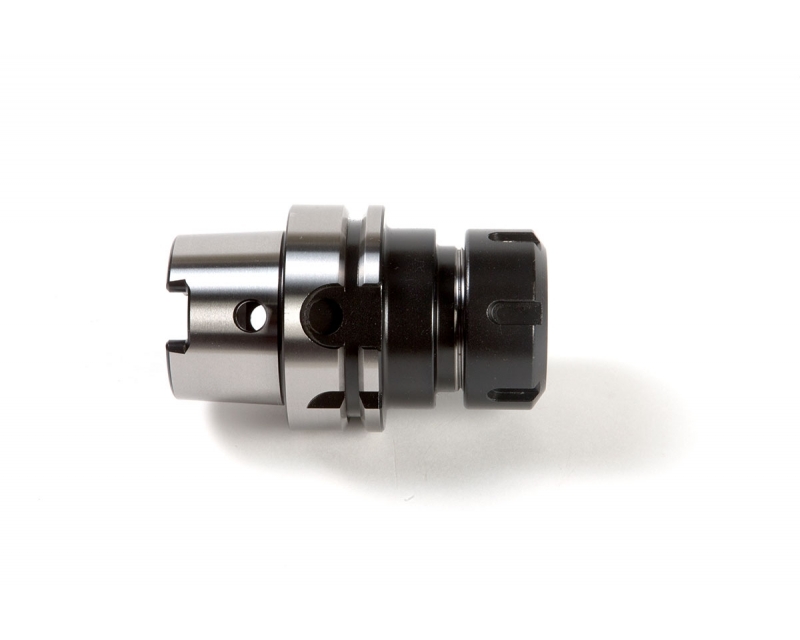

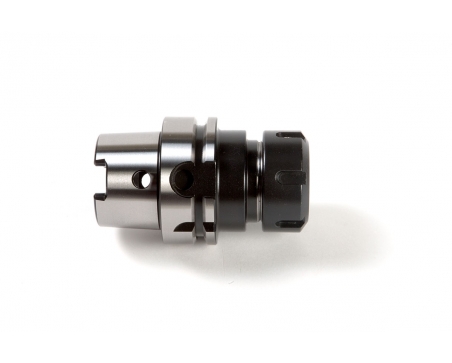

HSK63/A DIN69893 COLLET CHUCK H80 ER40

ER Collet Chuck - Accessories included

PRODUCT DETAILS

Data sheet

Taper: HSK63/A
Typology: PP - Collet Chucks
DIN ISO: DIN6499
H: 80
D: 63
Collet Type: ER40
Balancing: G6.3 15000
Weight (Kg): 1.16
