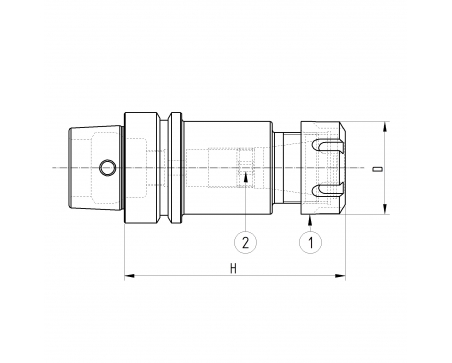

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 932GHREQ
  • GHIERA ER32 BILANCIATA STANDARD
  • 1
  • 2
  • 102215901
  • GRANO M22X1,5X9 CH 5 PASSANTE A0501014 (GRANO PER P/P)
  • 1
Direct purchase spare parts +

65EPP420

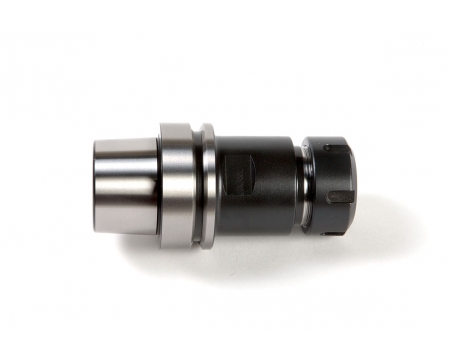

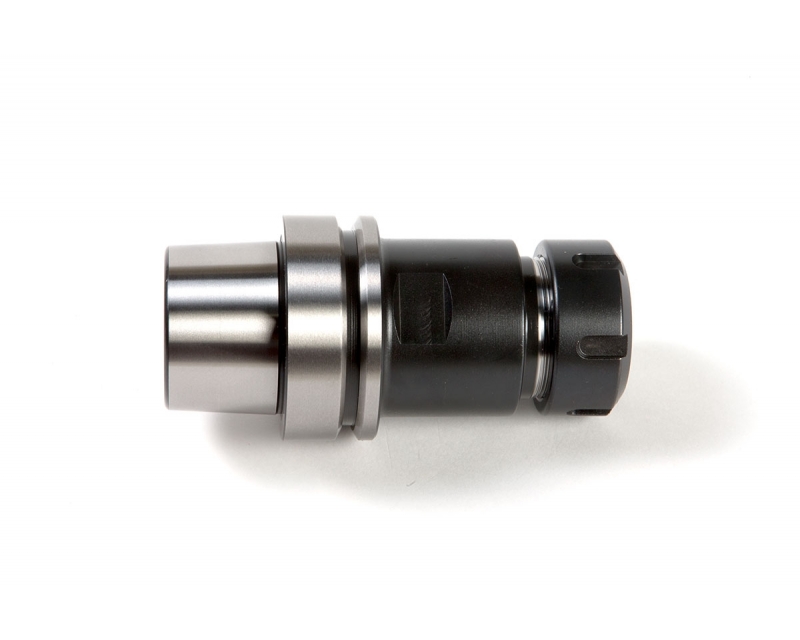

HSK50/E DIN69893 COLLET CHUCK H160 ER32

ER Collet Chuck - Accessories included

Data sheet

Taper
HSK50/E
Typology
PP - Collet Chucks
DIN ISO
DIN6499
H
160
D
50
Collet Type
ER32
Balancing
G2.5 20000
Weight (Kg)
1.46
