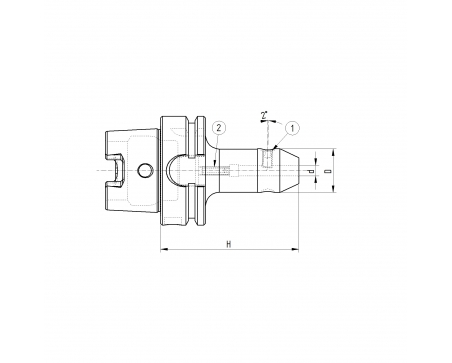

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 101401602
  • GRANO P. COPPA M14X16 BRUNITO DIN916 ISO4029 UNI5929 15929014016B
  • 1
  • 2
  • 101001601
  • GRANO P.PIANA M10X1,5X16 FORO PAS.D4
  • 1

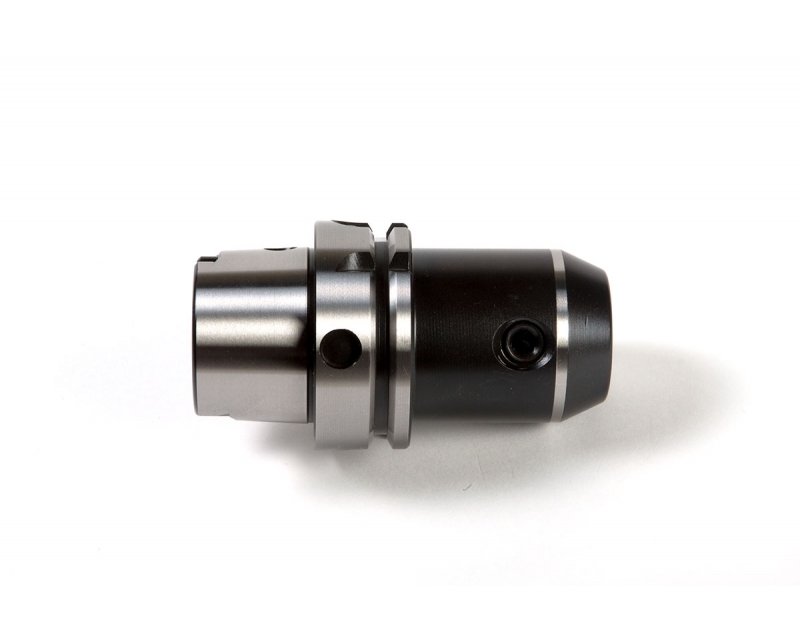

66AWHN18

HSK63/A DIN69893 W/NOTCH TYPE H.100 D.18

End Mill Holders Whistle Notch Type - Accessories included

Data sheet

Taper
HSK63/A
Typology
WHN - Whistle Notch (Short)
DIN ISO
DIN1835E
H
100
D
50
d
18
Balancing
G6.3 15000
Weight (Kg)
1.62
