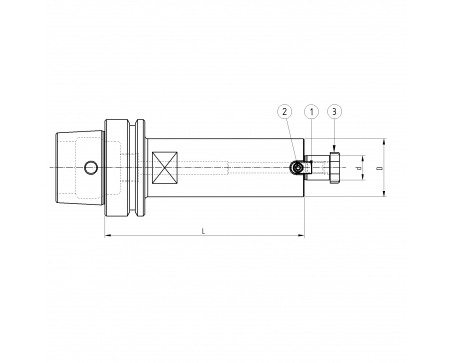

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 916TSL01
  • TASSELLO 8X8X14
  • 2
  • 2
  • 110301001
  • VITE 8.8 TCEI M3X10 BRUN. UNI5931 ISO4762 A0502006
  • 2
  • 3
  • 916VTC02
  • VITE TESTA A CROCE M8x16
  • 1
Direct purchase spare parts +

66EPF316

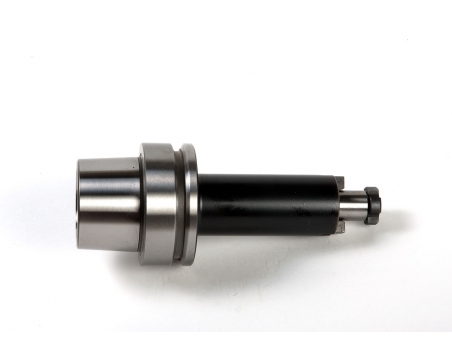

HSK63/E DIN69893 SHELL MILL HOLDER H130 D16

Shell Mill Holders-Tenons Drive - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
HSK63/E
Typology
PF - Shell Mill Holders
DIN ISO
ISO3937
D
38
d
16
L
130
Balancing
G2.5 20000
Weight (Kg)
1.62
