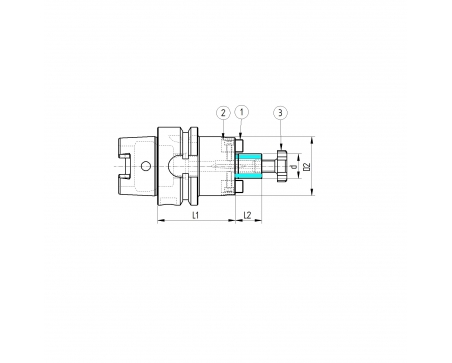

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 940TSL01
  • TASSELLO 16X16X25
  • 2
  • 2
  • 110601601
  • VITE 8.8 TCEI M6X16 BRUN. UNI5931 ISO4762 A0502005
  • 2
  • 3
  • 940VTC02
  • VITE TESTA A CROCE M20x30
  • 1
Direct purchase spare parts +

65APF140

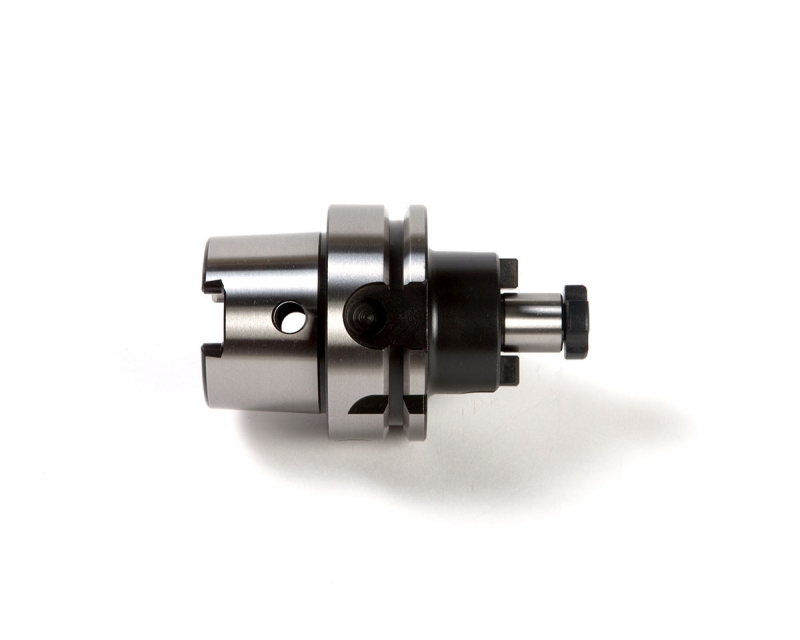

HSK50/A DIN69893 SHELL MILL HOLDER H70 D40

Shell Mill Holders With Internal Coolant Supply - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
HSK50/A
Typology
PF - Shell Mill Holders
DIN ISO
ISO3937
D
40
d
40
D2
80
L1
70
L2
27
Balancing
G6.3 15000
Weight (Kg)
1.98
