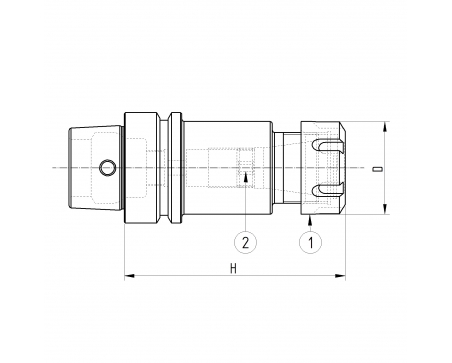

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 940GHREQ
  • GHIERA ER40 BILANCIATA STANDARD
  • 1
  • 2
  • 103015901
  • GRANO INTERNO M30X1,5X10
  • 1
Direct purchase spare parts +

65EPP426

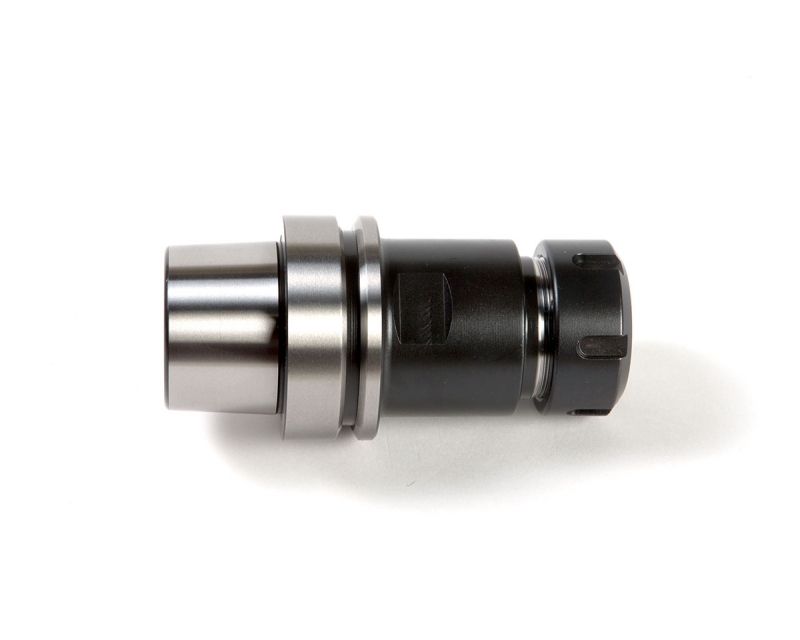

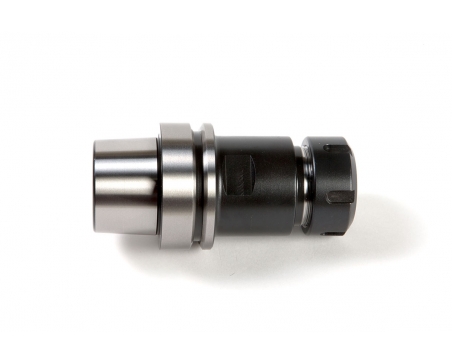

HSK50/E DIN69893 COLLET CHUCK H160 ER40

ER Collet Chuck - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
HSK50/E
Typology
PP - Collet Chucks
DIN ISO
DIN6499
H
160
D
63
Collet Type
ER40
Balancing
G2.5 20000
Weight (Kg)
2
