SUPPLIED COMPONENTS AND ACCESSORIES

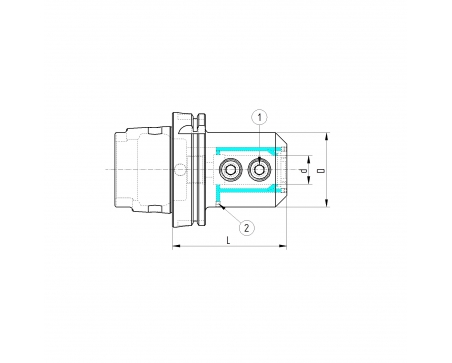

Position
Code
Description
Needs
- 1
- 100801002
- GRANO P. COPPA M8X10 BRUNITO DIN916 ISO4029 UNI5929 15929008010B
- 1
- 2
- 100400504
- GRANO P.PIANA M4X5 14.9 UNI 5923 ISO 4026 A0501023 BRUNITO
- 2
61AWLK08

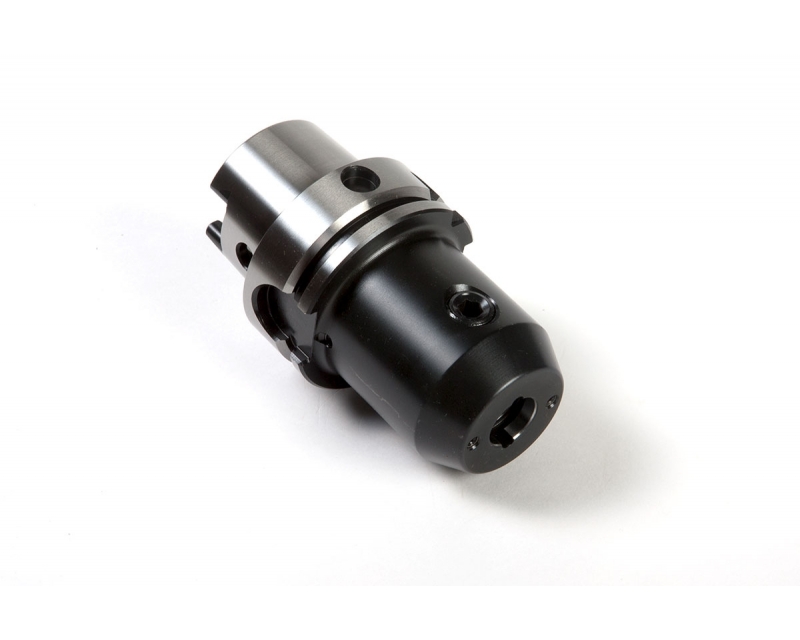

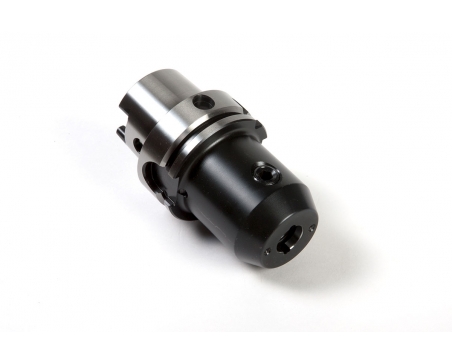

HSK100/A DIN69893 WELDON TYPE/C H80 D.8
End Mill Holders Weldon With Coolant Channels - Accessories included
Data sheet
- Taper
- HSK100/A
- Typology
- WLK - Weldon with Coolant Channels
- DIN ISO
- DIN1835B
- H
- 80
- D
- 28
- d
- 8
- Balancing
- G6.3 15000
- Weight (Kg)
- 2.19
End Mill Holders Weldon With Coolant Channels - Accessories included
