SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 922TSL01
  • TASSELLO 10X10X18
  • 2
  • 2
  • 110301201
  • VITE 8.8 TCEI M3X12 BRUN. UNI5931 ISO4762
  • 2
  • 3
  • 922VTC02
  • VITE TESTA A CROCE M10x18
  • 1
Direct purchase spare parts +

61APF122

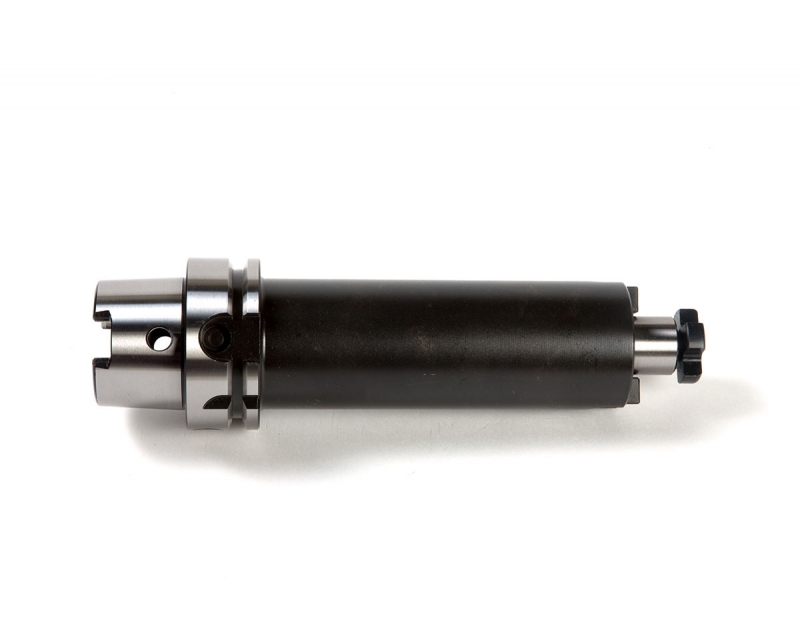

HSK100/A DIN69893 SHELL MILL HOLDER H50 D22

Shell Mill Holders With Internal Coolant Supply - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
HSK100/A
Typology
PF - Shell Mill Holders
DIN ISO
ISO3937

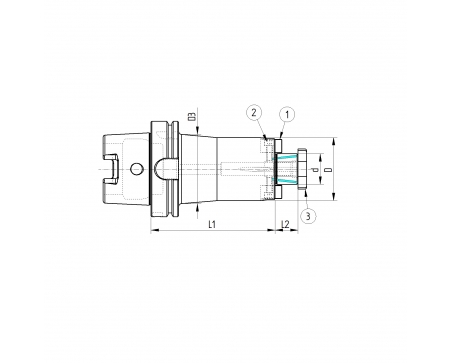

D
48
d
22
L1
50
L2
19
Balancing
G6.3 15000
Weight (Kg)
2.35
