SUPPLIED COMPONENTS AND ACCESSORIES
Position
Code
Description
Needs
- 1
- 101401602
- GRANO P. COPPA M14X16 BRUNITO DIN916 ISO4029 UNI5929 15929014016B
- 1
- 2
- 100400504
- GRANO P.PIANA M4X5 14.9 UNI 5923 ISO 4026 A0501023 BRUNITO
- 3
61AWLK16

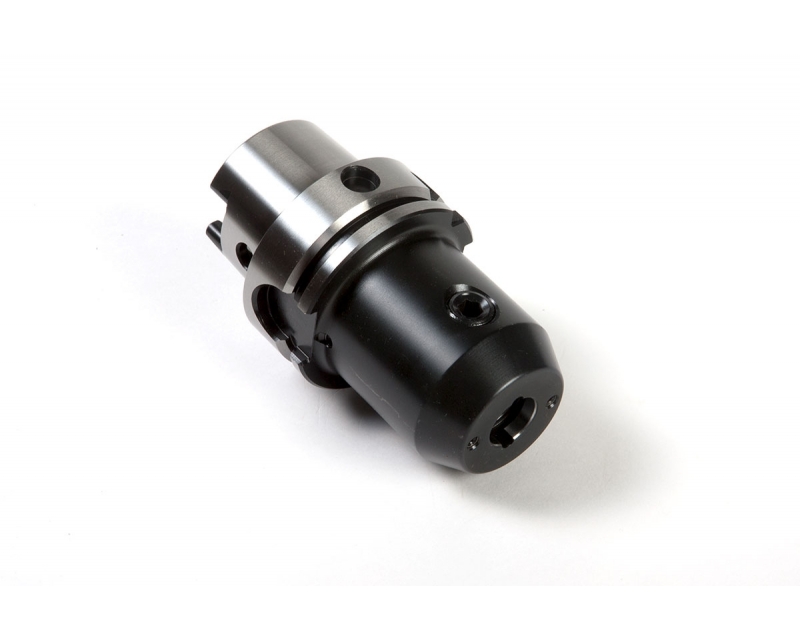

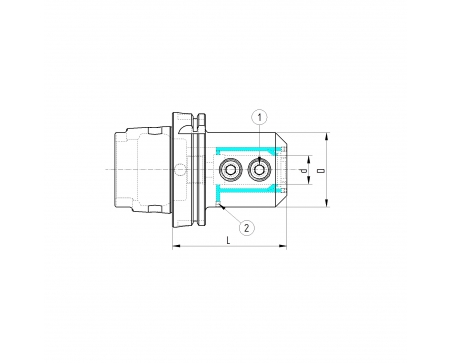

HSK100/A DIN69893 WELDON TYPE/C H100 D.16
End Mill Holders Weldon With Coolant Channels - Accessories included
Data sheet
- Taper
- HSK100/A
- Typology
- WLK - Weldon with Coolant Channels
- DIN ISO
- DIN1835B
- H
- 100
- D
- 48
- d
- 16
- Balancing
- G6.3 15000
- Weight (Kg)
- 2.84
End Mill Holders Weldon With Coolant Channels - Accessories included
