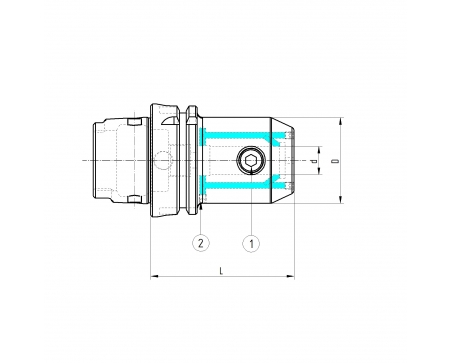

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 102002002
  • GRANO M20X2X20 BRUN A DISEGNO MATERIALE : AVPB
  • 2
  • 2
  • 100400504
  • GRANO P.PIANA M4X5 14.9 UNI 5923 ISO 4026 A0501023 BRUNITO
  • 3
Direct purchase spare parts +

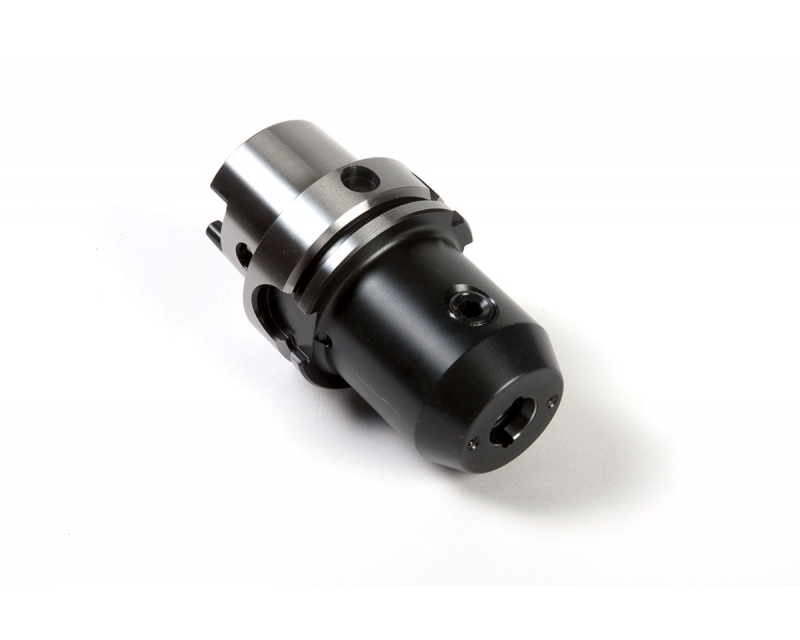

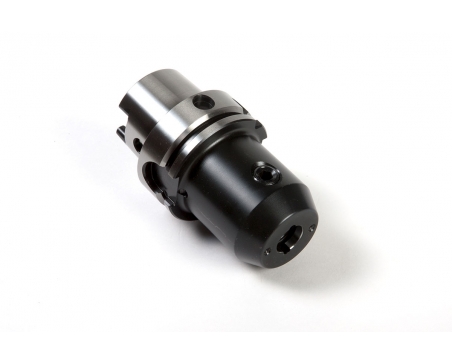

66AWLK40

HSK63/A DIN69893 WELDON TYPE/C H125 D.40

End Mill Holders Weldon With Coolant Channels - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
HSK63/A
Typology
WLK - Weldon with Coolant Channels
DIN ISO
DIN1835B
D
80
d
40
L
125
Balancing
G6.3 15000
Weight (Kg)
3.27
