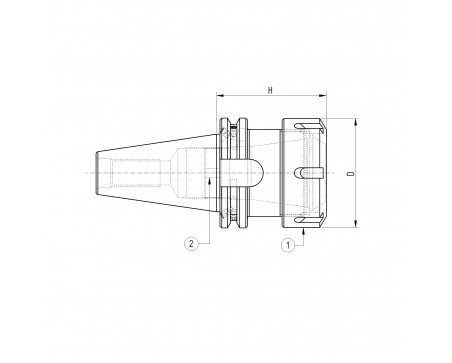

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 925GHREQ
  • GHIERA ER25 BILANCIATA STANDARD
  • 1
  • 2
  • 101815801
  • GRANO M18X1,5X8 CH.5 PASSANTE
  • 1
Direct purchase spare parts +

130PP116

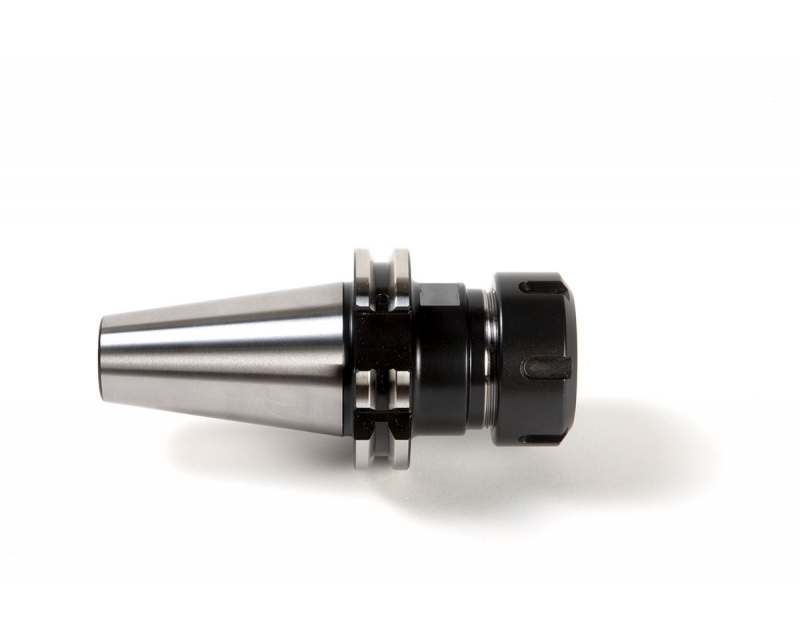

ISO30 DIN69871 COLLET CHUCK H.55 ER25 AD/B

ER Collet Chuck - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO30
Typology
PP - Collet Chucks
DIN ISO
DIN 6499
H
55
D
35
Collet Type
ER25
Balancing
G6.3 12000
Weight (Kg)
0.49
