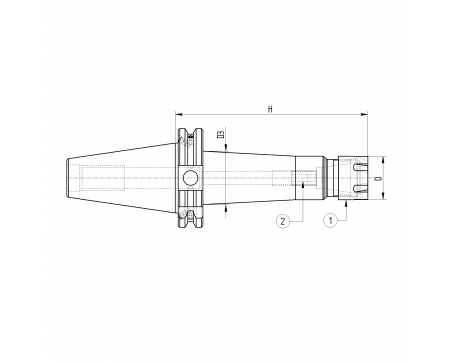

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 916GHRMN
  • GHIERA ER16 MINI
  • 1
  • 2
  • 101001601
  • GRANO P.PIANA M10X1,5X16 FORO PAS.D4
  • 1
Direct purchase spare parts +

140PM310

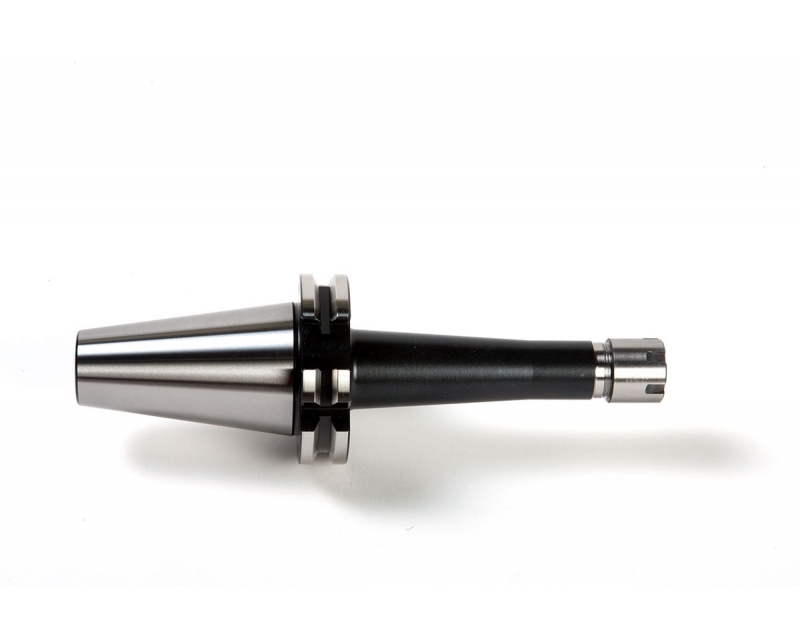

ISO40 DIN69871 COLLET CHUCK H130 ER16MINI AD/B

ER Mini Collet Chuck - Accessories included

Data sheet

Taper
ISO40
Typology
PM - ER Mini Collet Chucks
DIN ISO
DIN 6499
H
130
D
22
D3
27
Collet Type
ER16MINI
Weight (Kg)
1.02
