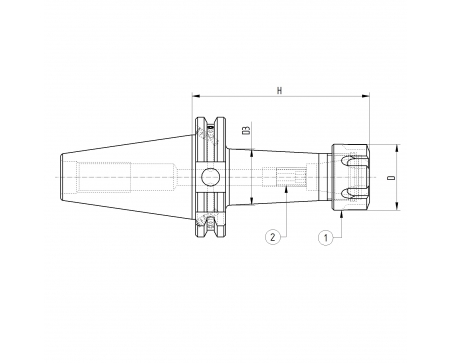

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 932GHREQ
  • GHIERA ER32 BILANCIATA STANDARD
  • 1
  • 2
  • 102215901
  • GRANO M22X1,5X9 CH 5 PASSANTE A0501014 (GRANO PER P/P)
  • 1
Direct purchase spare parts +

140PP220

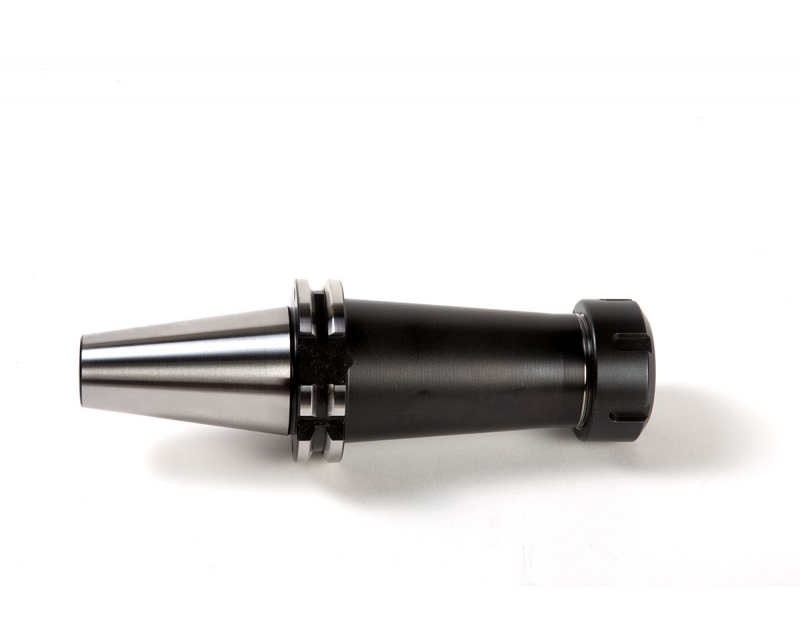

ISO40 DIN69871 COLLET CHUCK H.100 ER32 AD/B

ER Collet Chuck - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO40
Typology
PP - Collet Chucks
DIN ISO
DIN 6499
H
100
D
50
D1
49,5
Collet Type
ER32
Balancing
G6.3 12000
Weight (Kg)
1.46
