SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 925GHREQ
  • GHIERA ER25 BILANCIATA STANDARD
  • 1
  • 2
  • 101815801
  • GRANO M18X1,5X8 CH.5 PASSANTE
  • 1
Direct purchase spare parts +

140PP316

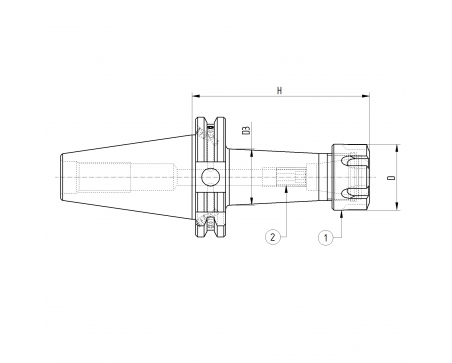

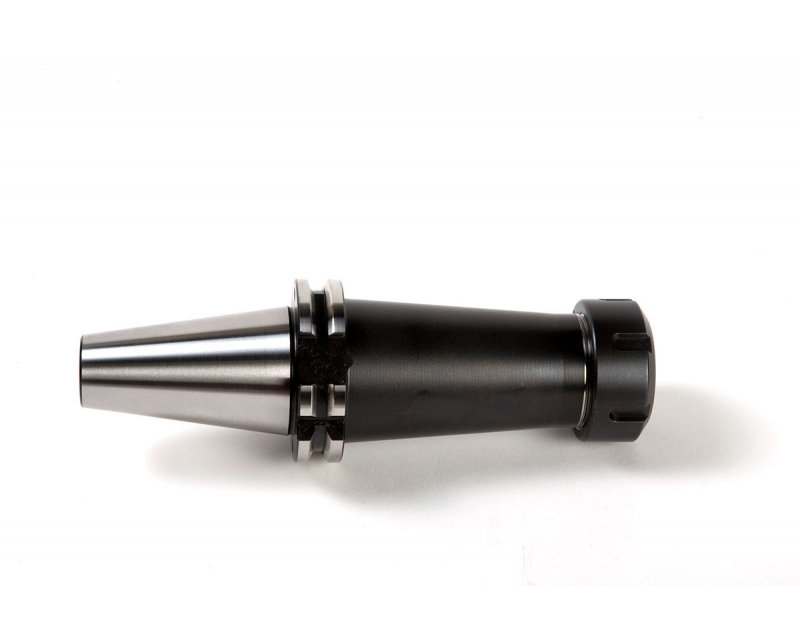

ISO40 DIN69871 COLLET CHUCK H.130 ER25 AD/B

ER Collet Chuck - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO40
Typology
PP - Collet Chucks
DIN ISO
DIN 6499
H
130
D
42
D3
45
Collet Type
ER25
Weight (Kg)
1.51
