SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 932TSL12
  • TASSELLO 14X20.5X21
  • 2
  • 2
  • 110602001
  • VITE 12.9 TCEI M6X20 BRUN. UNI5931 ISO4762 DIN912
  • 2
  • 3
  • 932VTC02
  • VITE TESTA A CROCE M16x26
  • 1

140PF132

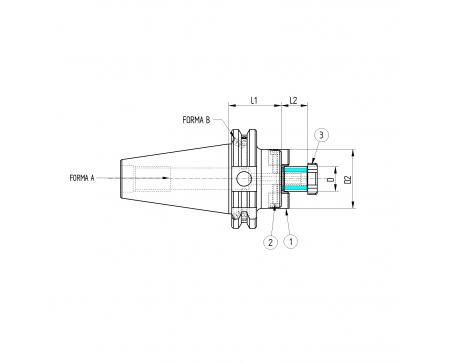

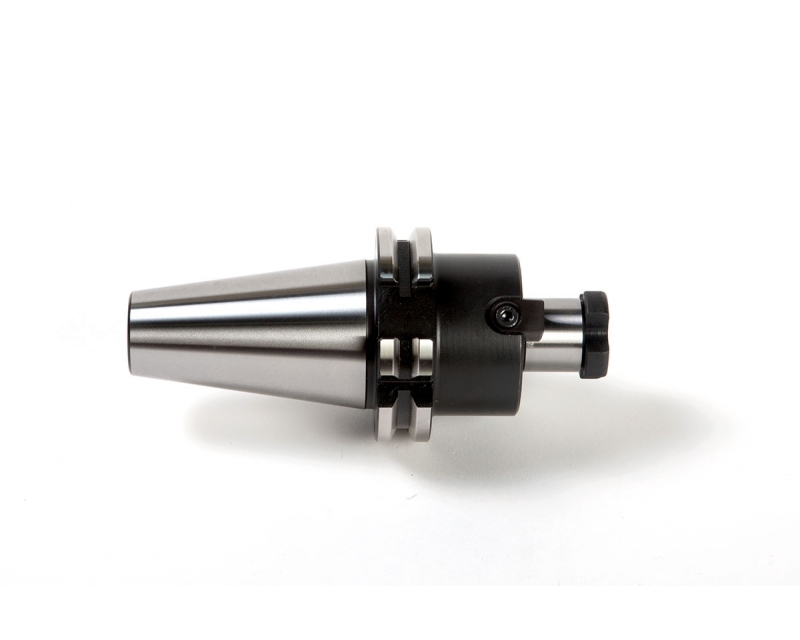

ISO40 DIN69871 SHELL MILL HOLDER H55 D.32 AD/B

Shell Mill Holders With Internal Coolant Supply - Accessories included

Data sheet

Taper
ISO40
Typology
PF - Shell Mill Holders
DIN ISO
ISO3937
D
32
D2
78
L1
55
L2
24
Weight (Kg)
1.79
