SUPPLIED COMPONENTS AND ACCESSORIES
Position
Code
Description
Needs
- 1
- 100801002
- GRANO P. COPPA M8X10 BRUNITO DIN916 ISO4029 UNI5929 15929008010B
- 1
- 2
- 100601601
- GRANO M6X16 BRUNITO FORATO A DISEGNO D.3
- 1

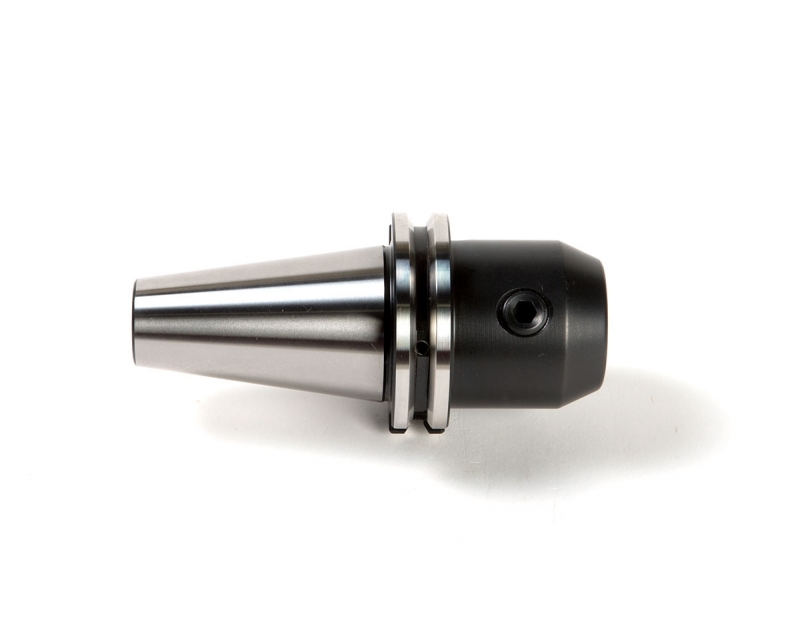

150WHN08
ISO50 DIN69871 W/NOTCH TYPE H63 D.08 AD/B
End Mill Holders Whistle Notch Type - Accessories included

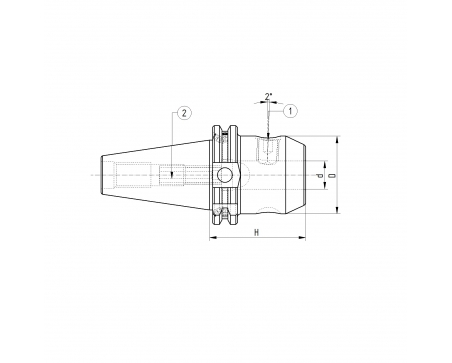

Data sheet
- Taper
- ISO50
- Typology
- WHN - Whistle Notch (Short)
- DIN ISO
- DIN1835E
- H
- 63
- D
- 28
- d
- 8
- Balancing
- G6.3 12000
- Weight (Kg)
- 2.7
End Mill Holders Whistle Notch Type - Accessories included
