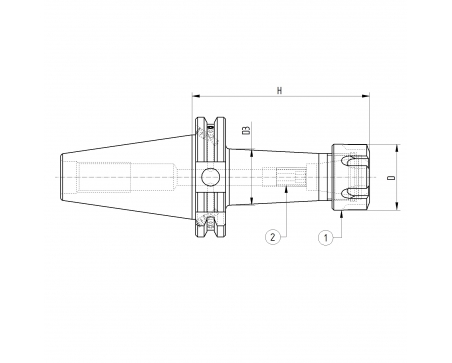

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 940GHREQ
  • GHIERA ER40 BILANCIATA STANDARD
  • 1
  • 2
  • 103015901
  • GRANO INTERNO M30X1,5X10
  • 1
Direct purchase spare parts +

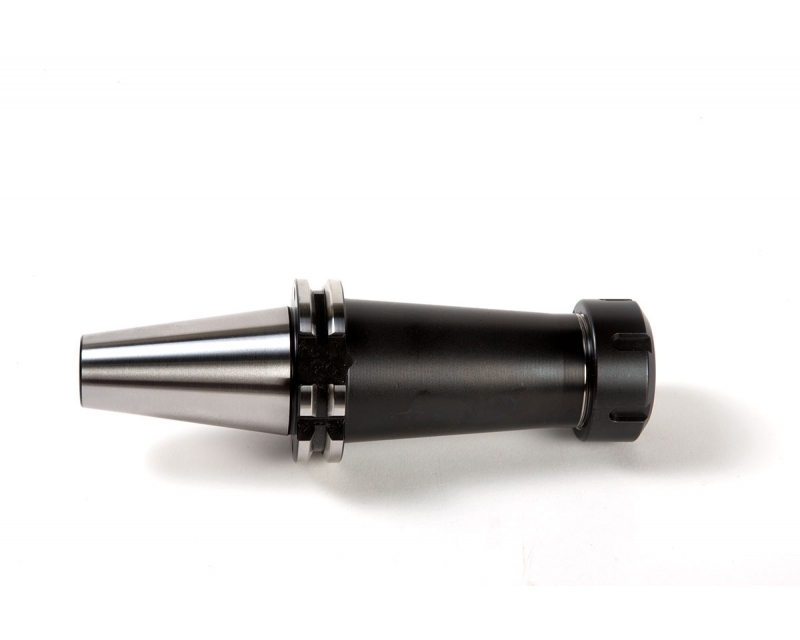

140PP526

ISO40 DIN69871 COLLET CHUCK H.200 ER40 AD/B

ER Collet Chuck - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO40
Typology
PP - Collet Chucks
DIN ISO
DIN 6499
H
200
D
63
D3
50
Collet Type
ER40
Weight (Kg)
2.7
