SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 110803501
  • VITE 8.8 TCEI M8X35 BRUN. UNI5931 ISO4762 DIN912 A0502004
  • 1
  • 2
  • 913INS01
  • MANDRINO PER PUNTE 1-13
  • 1
Direct purchase spare parts +

150MPI13

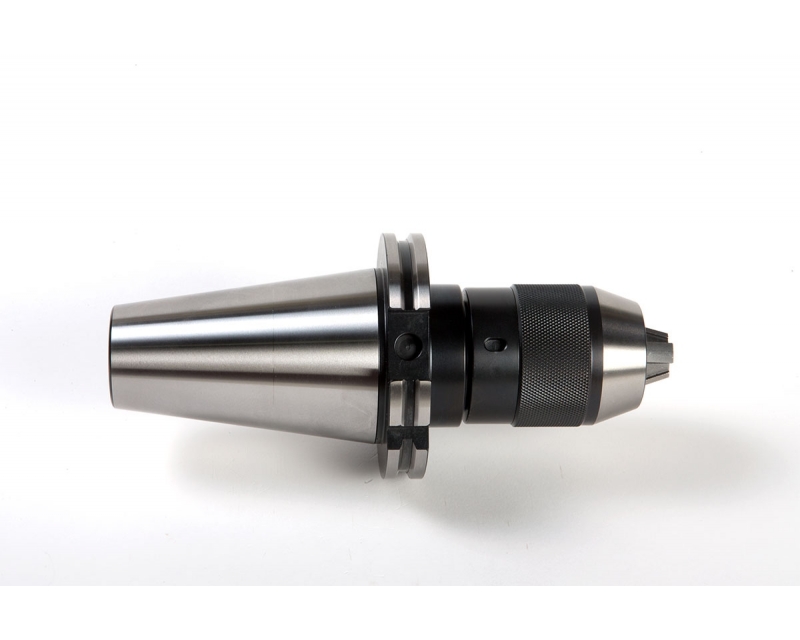

ISO50 DIN69871 COLLET CHUCK INT.H87 DC13 A

Universal Drill Chucks - Accessories included

  • PRODUCT DETAILS

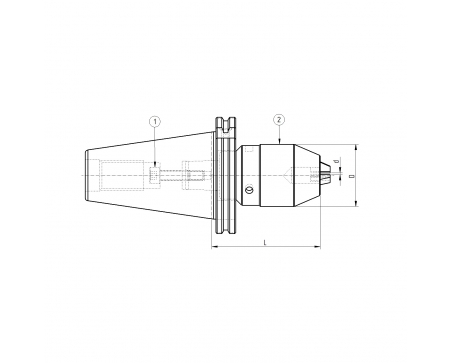

Data sheet

Taper
ISO50
Typology
MPI - Universal Drill Chucks
D
50
d
1-13
L
87
Weight (Kg)
3.12
