SUPPLIED COMPONENTS AND ACCESSORIES
Position
Code
Description
Needs
- 1
- 922TSL10
- TASSELLO 10X8X15,6
- 2
- 2
- 110401001
- VITE 8.8 TCEI M4X10 BRUN. UNI5931 ISO4762 DIN912
- 2
- 3
- 922VTC02
- VITE TESTA A CROCE M10x18
- 1
150PF222

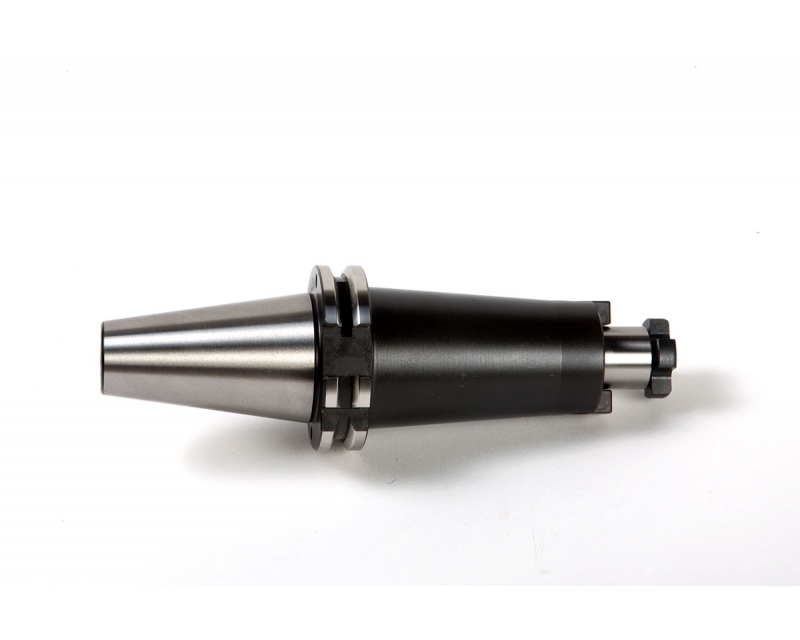

ISO50 DIN69871 SHELL MILL HOLDER H.100 D.22 AD/B
Shell Mill Holders With Internal Coolant Supply - Accessories included

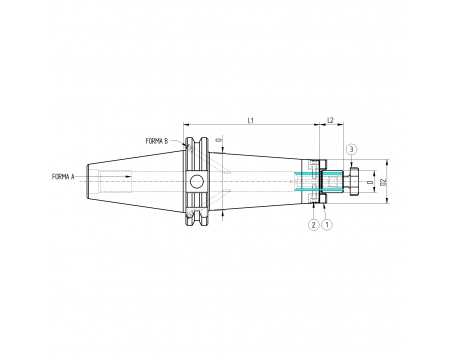

Data sheet
- Taper
- ISO50
- Typology
- PF - Shell Mill Holders
- DIN ISO
- ISO3937
- D
- 22
- D2
- 40
- D3
- 55
- L1
- 100
- L2
- 19
- Weight (Kg)
- 3.75
Shell Mill Holders With Internal Coolant Supply - Accessories included
