SUPPLIED COMPONENTS AND ACCESSORIES
Position
Code
Description
Needs
- 1
- 940TSL11
- TASSELLO 16X22,5X24
- 2
- 2
- 110602001
- VITE 12.9 TCEI M6X20 BRUN. UNI5931 ISO4762 DIN912
- 2
- 3
- 940VTC02
- VITE TESTA A CROCE M20x30
- 1

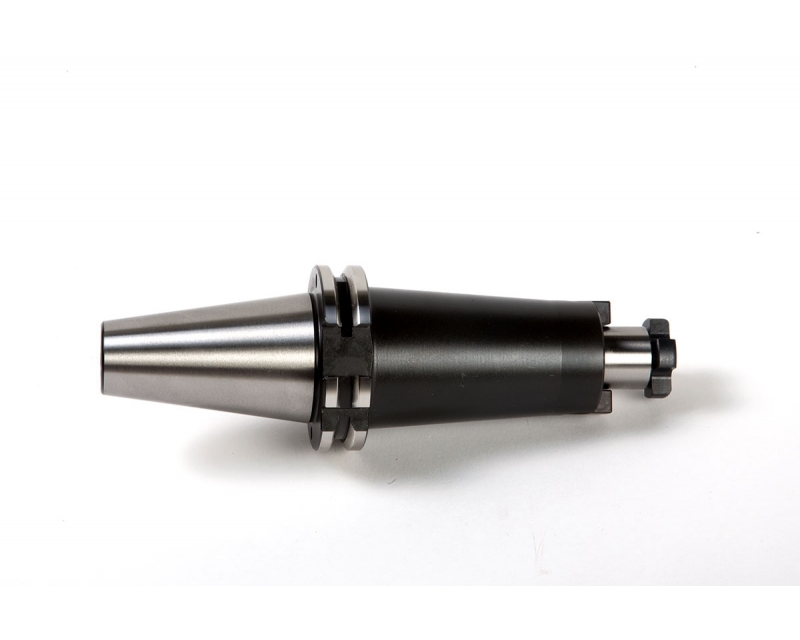

140PF440
ISO40 DIN69871 SHELL MILL HOLDER H160 D.40 AD/B
Shell Mill Holders With Internal Coolant Supply - Accessories included

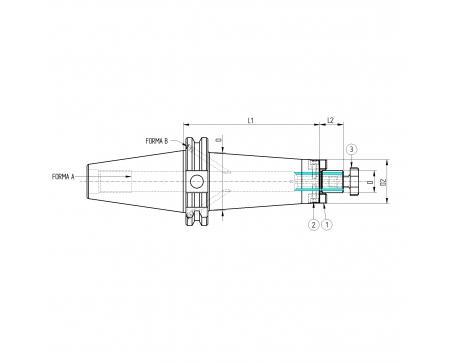

Data sheet
- Taper
- ISO40
- Typology
- PF - Shell Mill Holders
- DIN ISO
- ISO3937
- D
- 40
- D2
- 80
- D3
- 50
- L1
- 160
- L2
- 27
- Weight (Kg)
- 3.79
Shell Mill Holders With Internal Coolant Supply - Accessories included
