SUPPLIED COMPONENTS AND ACCESSORIES
Position
Code
Description
Needs
- 1
- 932TSL12
- TASSELLO 14X20.5X21
- 2
- 2
- 110602001
- VITE 12.9 TCEI M6X20 BRUN. UNI5931 ISO4762 DIN912
- 2
- 3
- 932VTC02
- VITE TESTA A CROCE M16x26
- 1
150PF132

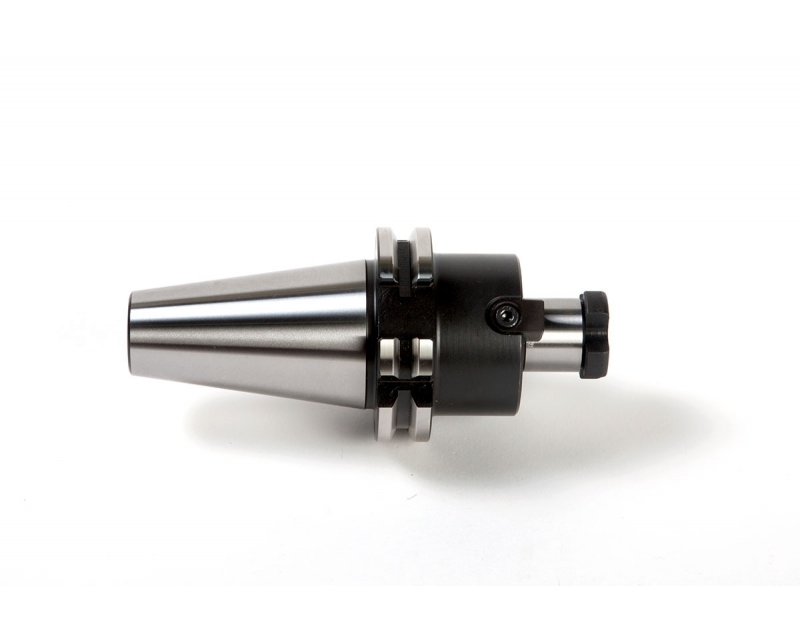

ISO50 DIN69871 SHELL MILL HOLDER H.55 D.32 AD/B
Shell Mill Holders With Internal Coolant Supply - Accessories included

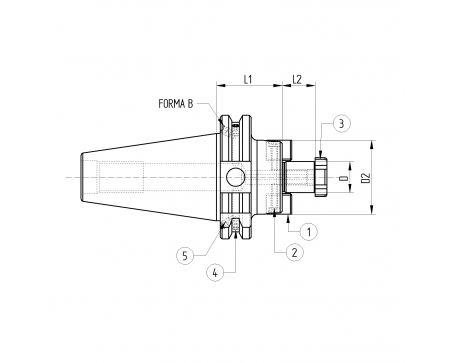

Data sheet
- Taper
- ISO50
- Typology
- PF - Shell Mill Holders
- DIN ISO
- ISO3937
- D
- 32
- D2
- 78
- L1
- 55
- L2
- 24
- Weight (Kg)
- 4.09
Shell Mill Holders With Internal Coolant Supply - Accessories included
