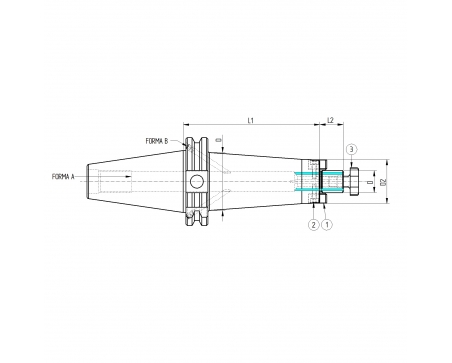

SUPPLIED COMPONENTS AND ACCESSORIES
Position
Code
Description
Needs
- 1
- 927TSL10
- TASSELLO 12X9X18,3
- 2
- 2
- 110501201
- VITE 8.8 TCEI M5X12 BRUN. UNI5931 ISO4762 DIN912
- 2
- 3
- 927VTC02
- VITE TESTA A CROCE M12x22
- 1

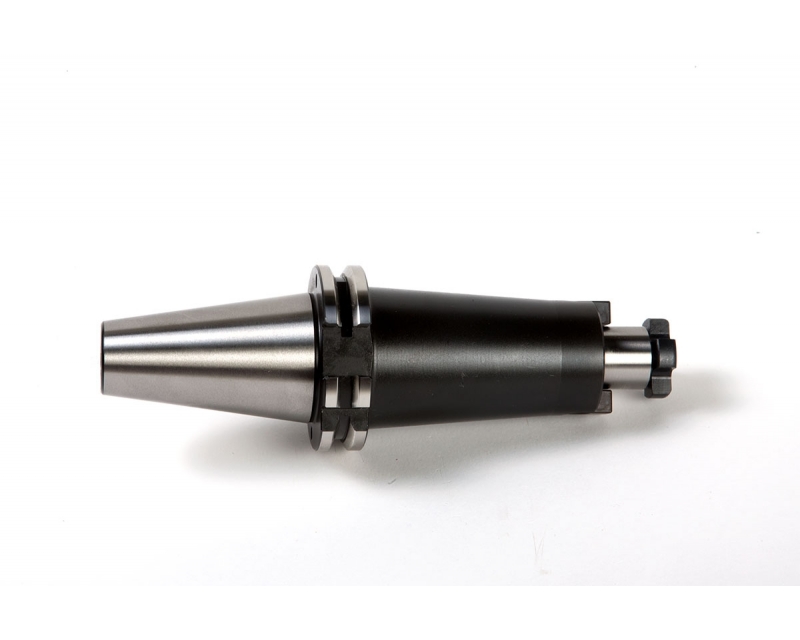

150PF227
ISO50 DIN69871 SHELL MILL HOLDER H.100 D.27 AD/B
Shell Mill Holders With Internal Coolant Supply - Accessories included
Data sheet
- Taper
- ISO50
- Typology
- PF - Shell Mill Holders
- DIN ISO
- ISO3937
- D
- 27
- D2
- 48
- D3
- 60
- L1
- 100
- L2
- 21
- Weight (Kg)
- 4.59
Shell Mill Holders With Internal Coolant Supply - Accessories included
