SUPPLIED COMPONENTS AND ACCESSORIES
Position
Code
Description
Needs
- 1
- 932TSL10
- TASSELLO 14X11X21
- 2
- 2
- 110601201
- VITE 8.8 TCEI M6X12 BRUN. UNI5931 ISO4762
- 2
- 3
- 932VTC02
- VITE TESTA A CROCE M16x26
- 1

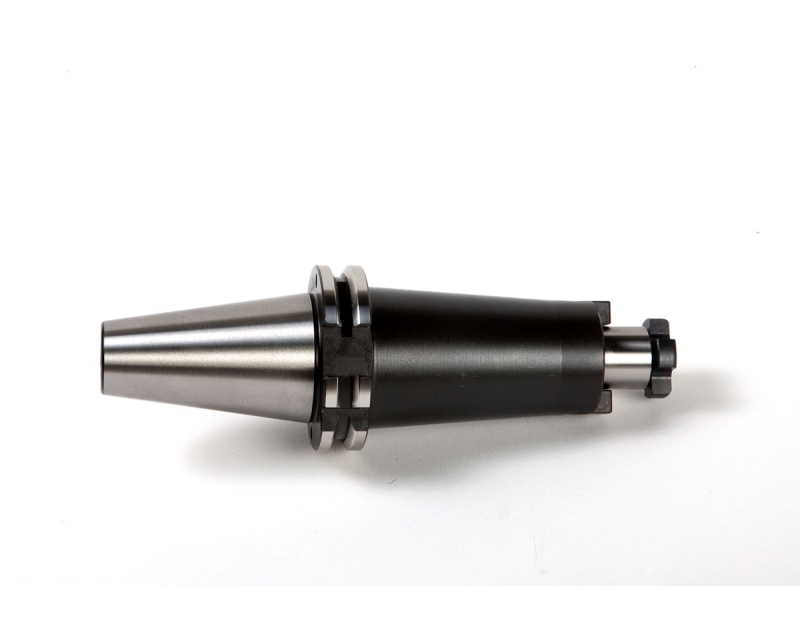

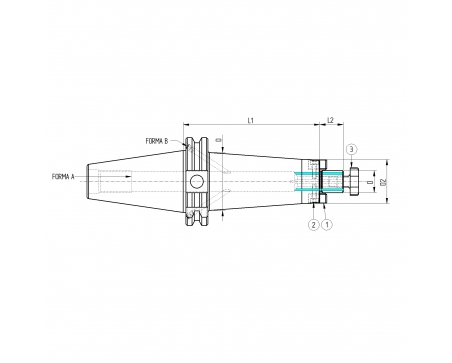

150PF232
ISO50 DIN69871 SHELL MILL HOLDER H.100 D.32 AD/B
Shell Mill Holders With Internal Coolant Supply - Accessories included
Data sheet
- Taper
- ISO50
- Typology
- PF - Shell Mill Holders
- DIN ISO
- ISO3937
- D
- 32
- D2
- 58
- D3
- 68
- L1
- 100
- L2
- 24
- Weight (Kg)
- 5.01
Shell Mill Holders With Internal Coolant Supply - Accessories included
