SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 916TSL01
  • TASSELLO 8X8X14
  • 2
  • 2
  • 110301001
  • VITE 8.8 TCEI M3X10 BRUN. UNI5931 ISO4762 A0502006
  • 2
  • 3
  • 916VTC02
  • VITE TESTA A CROCE M8x16
  • 1
Direct purchase spare parts +

150PF716

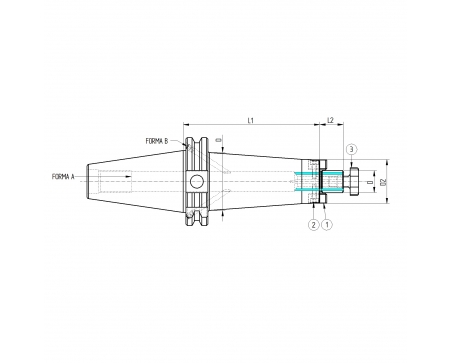

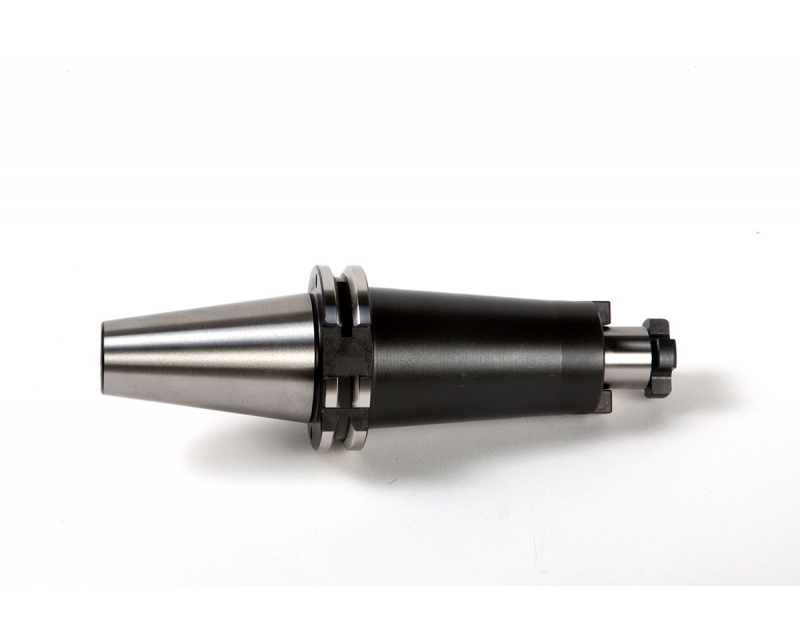

ISO50 DIN69871 SHELL MILL HOLDER H.300 D.16 AD/B

Shell Mill Holders With Internal Coolant Supply - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO50
Typology
PF - Shell Mill Holders
DIN ISO
ISO3937
D
16
D2
38
D3
52
L1
300
L2
17
Weight (Kg)
5.32
