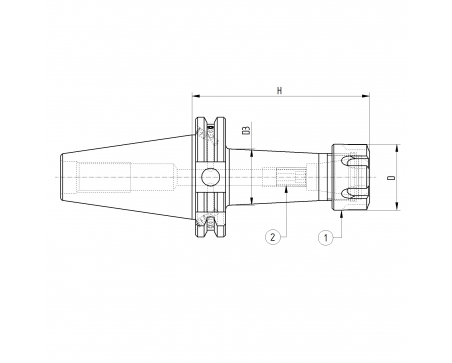

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 950GHREQ
  • GHIERA ER50 BILANCIATA STANDARD
  • 1
  • 2
  • 103015901
  • GRANO INTERNO M30X1,5X10
  • 1
Direct purchase spare parts +

150PP434

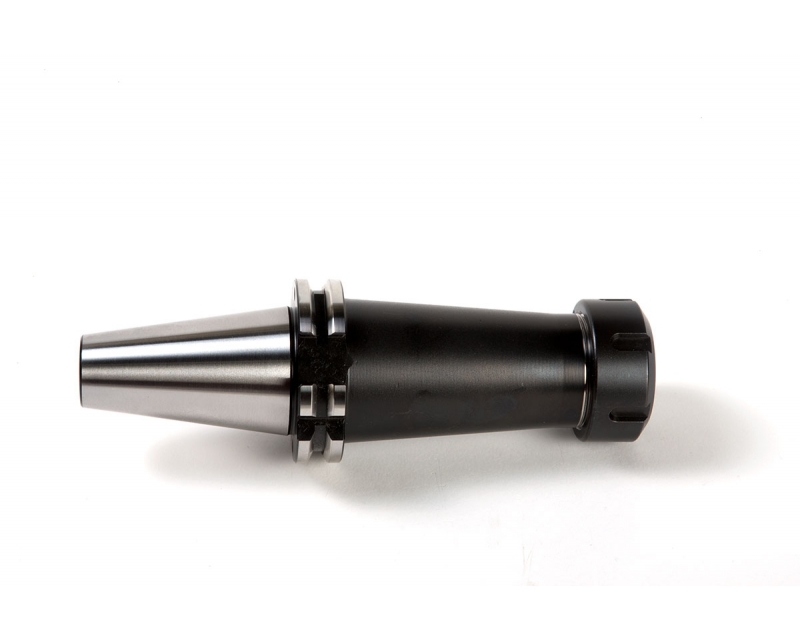

ISO50 DIN69871 COLLET CHUCK H160 ER50 AD/B

ER Collet Chuck - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO50
Typology
PP - Collet Chucks
DIN ISO
DIN 6499
H
160
D
78
D3
75
Collet Type
ER50
Weight (Kg)
5.5
