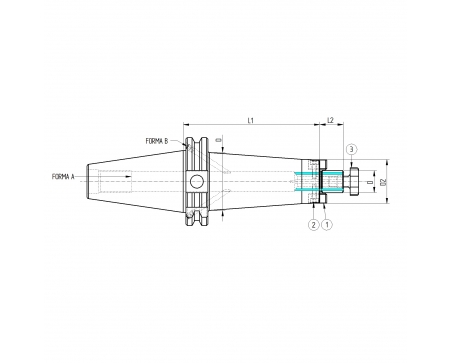

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 932TSL01
  • TASSELLO 14X14X22
  • 2
  • 2
  • 110601601
  • VITE 8.8 TCEI M6X16 BRUN. UNI5931 ISO4762 A0502005
  • 2
  • 3
  • 932VTC02
  • VITE TESTA A CROCE M16x26
  • 1
Direct purchase spare parts +

150PF732

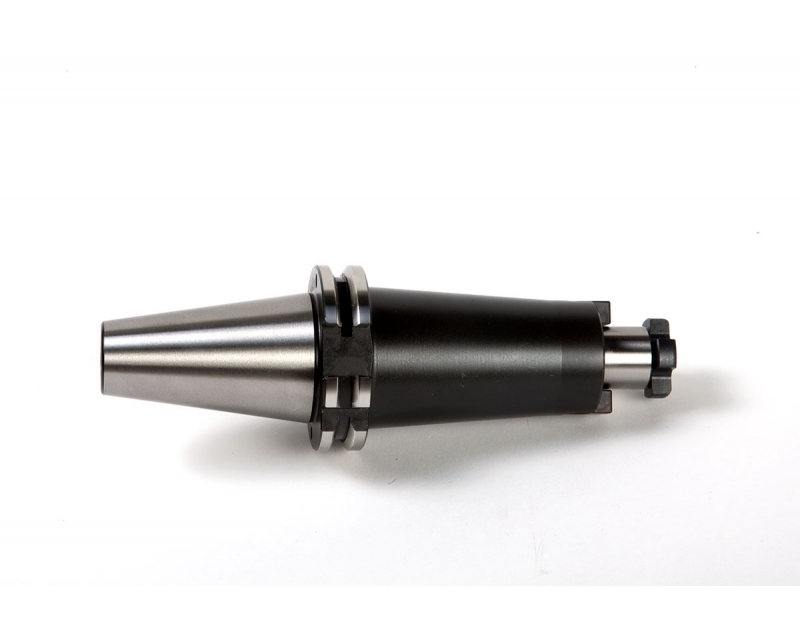

ISO50 DIN69871 SHELL MILL HOLDER H.300 D.32 AD/B

Shell Mill Holders With Internal Coolant Supply - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO50
Typology
PF - Shell Mill Holders
DIN ISO
ISO3937
D
32
D2
66
D3
66
L1
300
L2
24
Weight (Kg)
9.57
