SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 927TSL01
  • TASSELLO 12X12X18
  • 2
  • 2
  • 110401601
  • VITE 8.8 TCEI M4X16 BRUN. UNI5931 ISO4762 DIN912 A0502001
  • 2
  • 3
  • 927VTC02
  • VITE TESTA A CROCE M12x22
  • 1
Direct purchase spare parts +

150PF827

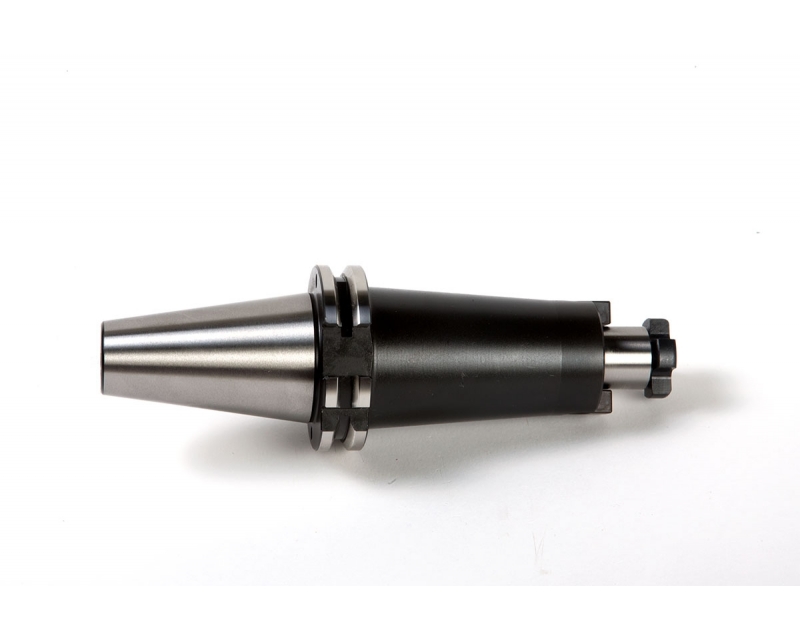

ISO50 DIN69871 SHELL MILL HOLDER H.350 D.27 AD/B

Shell Mill Holders With Internal Coolant Supply - Accessories included

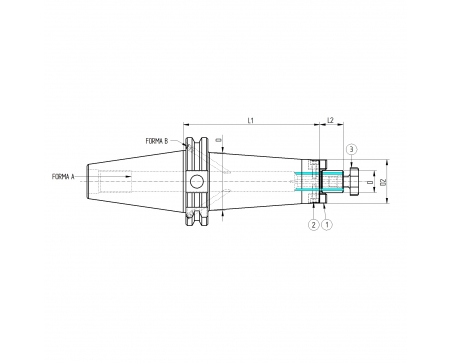

  • PRODUCT DETAILS

Data sheet

Taper
ISO50
Typology
PF - Shell Mill Holders
DIN ISO
ISO3937
D
27
D2
55
D3
78
L1
350
L2
21
Weight (Kg)
10.8
