SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 922TSL11
  • TASSELLO 10X11,6X15,6
  • 2
  • 2
  • 110401201
  • VITE 8.8 TCEI M4X12 BRUN.UNI 5931 ISO 4762
  • 2
  • 3
  • 922VTC02
  • VITE TESTA A CROCE M10x18
  • 1
  • 4
  • 500100001
  • ANELLO O-RING PLASTICA X ISO40 D.i22 D.e25 H7
  • 1
Direct purchase spare parts +

540PF222

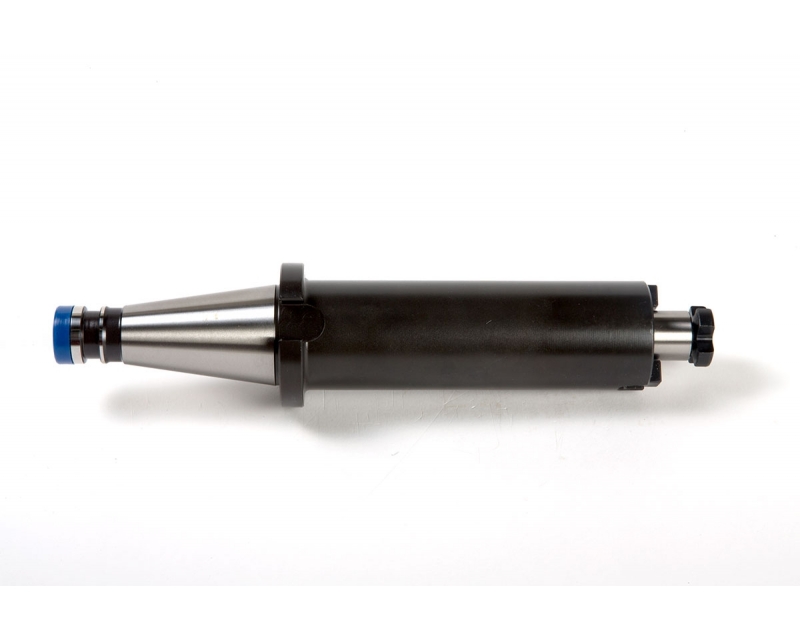

ISO40 DIN2080 SHELL MILL HOLDER H100 D.22

Shell Mill Holders-Tenons Drive - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO40
Typology
PF - Shell Mill Holders
DIN ISO
ISO3937

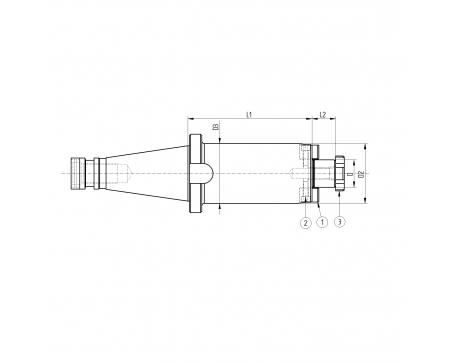

D
22
D2
48
D3
48
L1
100
L2
19
Weight (Kg)
1.19
