SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 927TSL11
  • TASSELLO 12X13,3X18,3
  • 2
  • 2
  • 110501601
  • VITE 8.8 TCEI M5X16 BRUN. UNI5931 ISO4762 DIN912 A0502002
  • 2
  • 3
  • 927VTC02
  • VITE TESTA A CROCE M12x22
  • 1
  • 4
  • 500100001
  • ANELLO O-RING PLASTICA X ISO40 D.i22 D.e25 H7
  • 1
Direct purchase spare parts +

540PF227

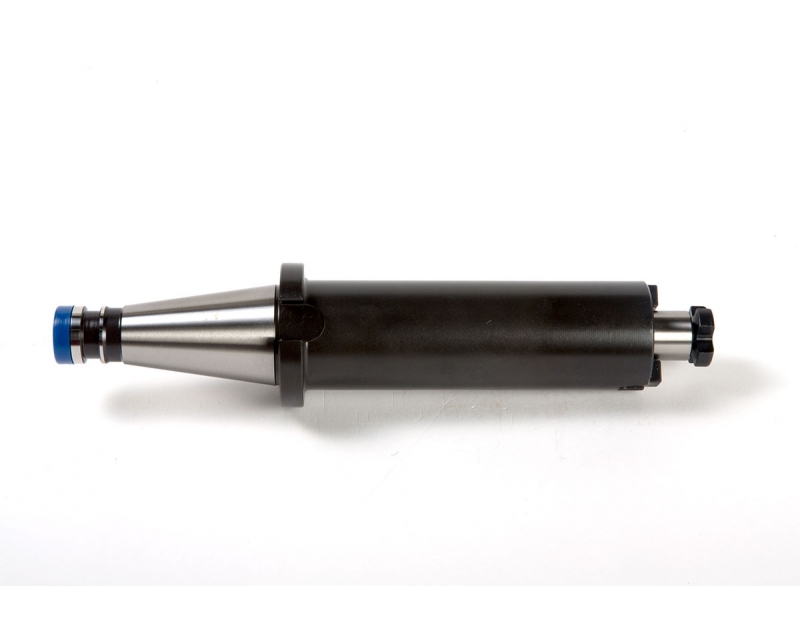

ISO40 DIN2080 SHELL MILL HOLDER H100 D.27

Shell Mill Holders-Tenons Drive - Accessories included

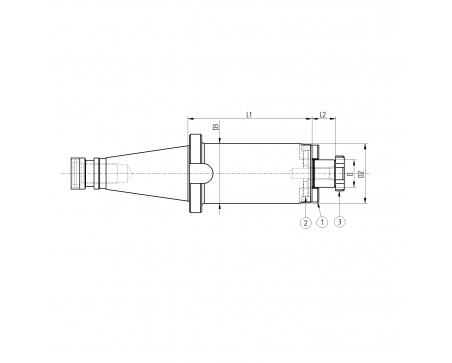

  • PRODUCT DETAILS

Data sheet

Taper
ISO40
Typology
PF - Shell Mill Holders
DIN ISO
ISO3937
D
27
D2
58
D3
58
L1
100
L2
21
Weight (Kg)
1.4
