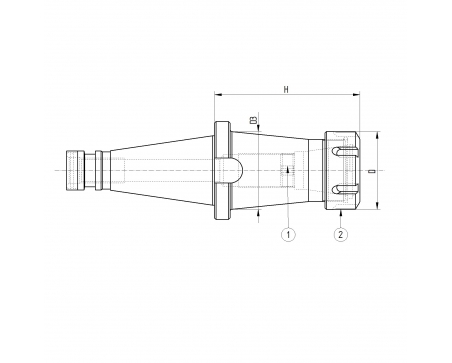

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 916GHREQ
  • GHIERA ER16 BILANCIATA STANDARD
  • 1
  • 2
  • 101001601
  • GRANO P.PIANA M10X1,5X16 FORO PAS.D4
  • 1
  • 3
  • 500100001
  • ANELLO O-RING PLASTICA X ISO40 D.i22 D.e25 H7
  • 1
Direct purchase spare parts +

540PP410

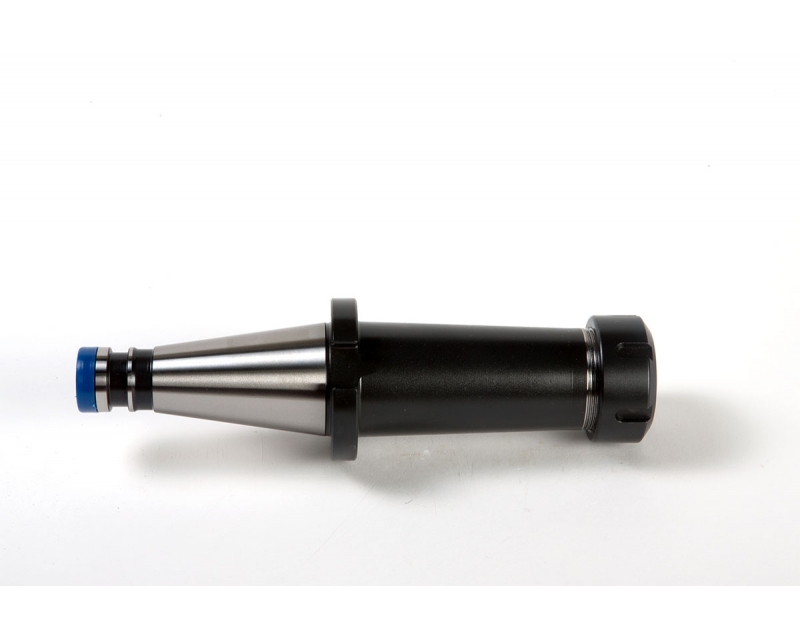

ISO40 DIN2080 COLLET CHUCK H160 ER16

ER Collet Chuck - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO40
Typology
PP - Collet Chucks
DIN ISO
DIN6499
H
160
D
32
D3
34
Collet Type
ER16
Weight (Kg)
1.46
