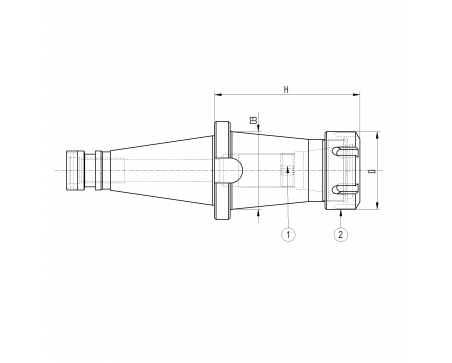

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 932GHREQ
  • GHIERA ER32 BILANCIATA STANDARD
  • 1
  • 2
  • 102215901
  • GRANO M22X1,5X9 CH 5 PASSANTE A0501014 (GRANO PER P/P)
  • 1
  • 3
  • 500100001
  • ANELLO O-RING PLASTICA X ISO40 D.i22 D.e25 H7
  • 1
Direct purchase spare parts +

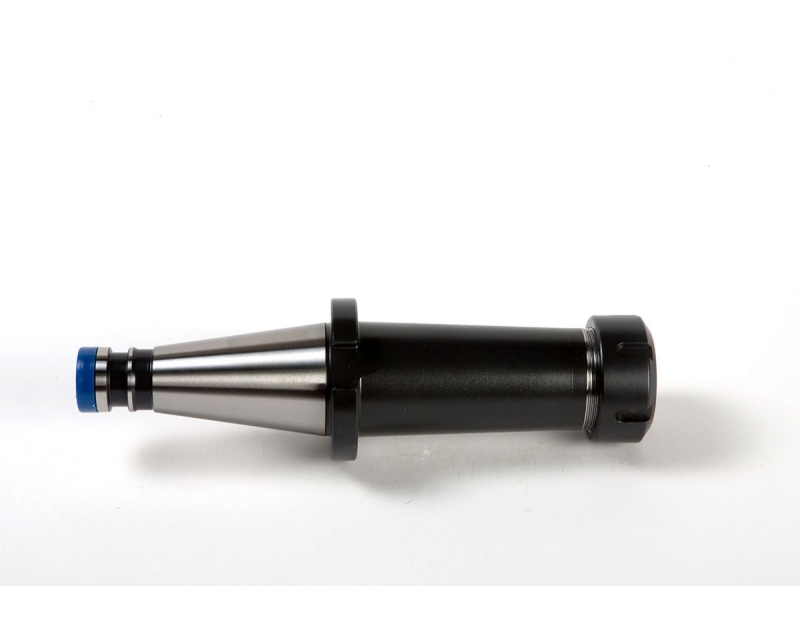

540PP320

ISO40 DIN2080 COLLET CHUCK H130 ER32

ER Collet Chuck - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO40
Typology
PP - Collet Chucks
DIN ISO
DIN6499
H
130
D
50
D3
45
Collet Type
ER32
Weight (Kg)
1.66
