SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 940TSL04
  • TASSELLO 15,9X16X19,5
  • 2
  • 2
  • 110601601
  • VITE 8.8 TCEI M6X16 BRUN. UNI5931 ISO4762 A0502005
  • 2
  • 3
  • 940VTC02
  • VITE TESTA A CROCE M20x30
  • 1
  • 4
  • 500100001
  • ANELLO O-RING PLASTICA X ISO40 D.i22 D.e25 H7
  • 1
Direct purchase spare parts +

540PI140

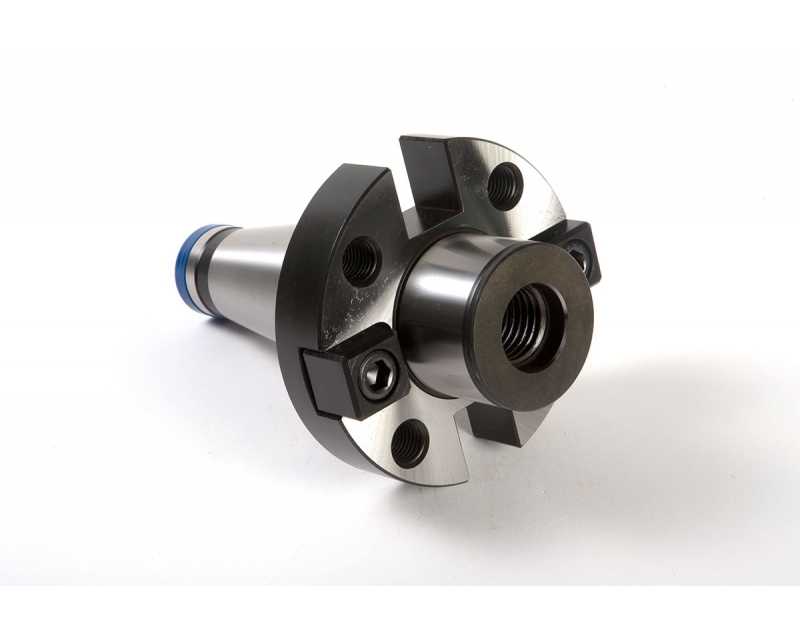

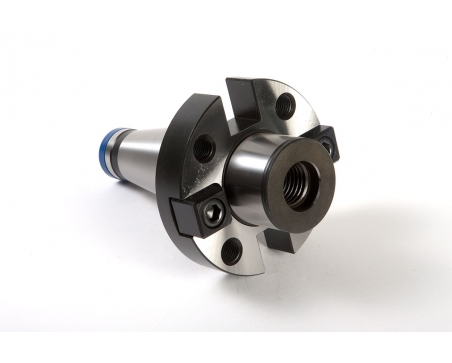

ISO40 DIN2080 FACE MILL HOLDER H20 D40

Face Mill Holders For Face Milling Cutters - Accessories included

  • PRODUCT DETAILS

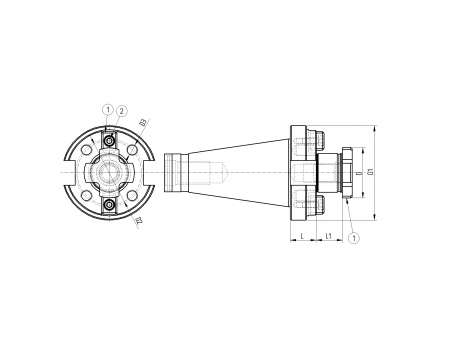

Data sheet

Taper
ISO40
Typology
PI - Face Mill Holders
DIN ISO
DIN6357
D
40
D1
89
D2
66
D3
M12
L
20
L1
30
b
15
Weight (Kg)
1.66
