SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 932TSL11
  • TASSELLO 14X15X21
  • 2
  • 2
  • 110602001
  • VITE 12.9 TCEI M6X20 BRUN. UNI5931 ISO4762 DIN912
  • 2
  • 3
  • 932VTC02
  • VITE TESTA A CROCE M16x26
  • 1
  • 4
  • 500100001
  • ANELLO O-RING PLASTICA X ISO40 D.i22 D.e25 H7
  • 1
Direct purchase spare parts +

540PF132

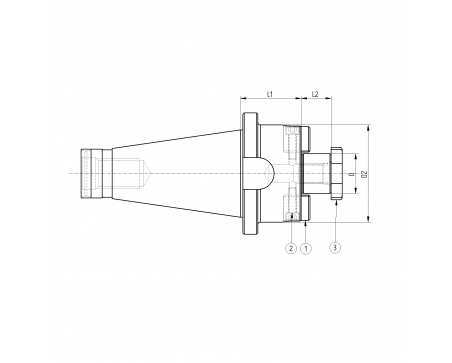

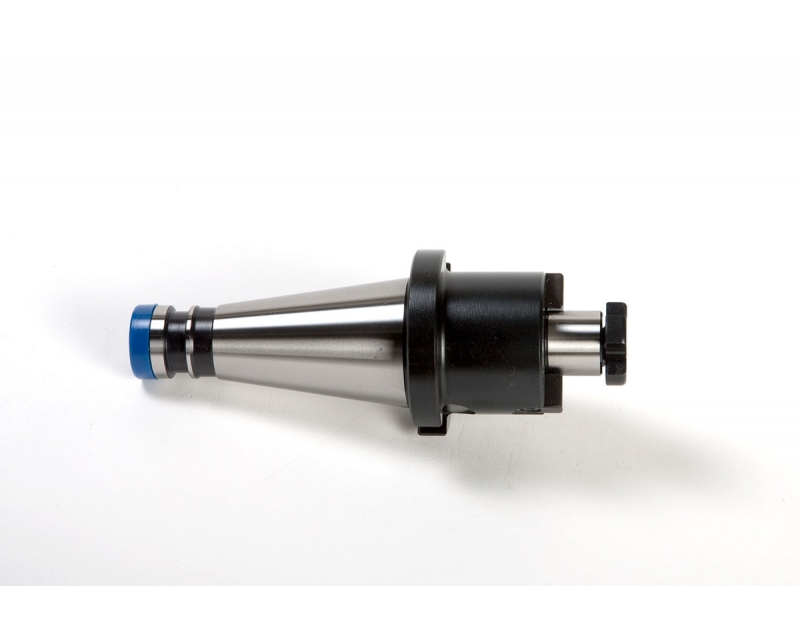

ISO40 DIN2080 SHELL MILL HOLDER H50 D32

Shell Mill Holders-Tenons Drive - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO40
Typology
PF - Shell Mill Holders
DIN ISO
ISO3937
D
32
D2
78
L1
50
L2
24
Weight (Kg)
2.07
