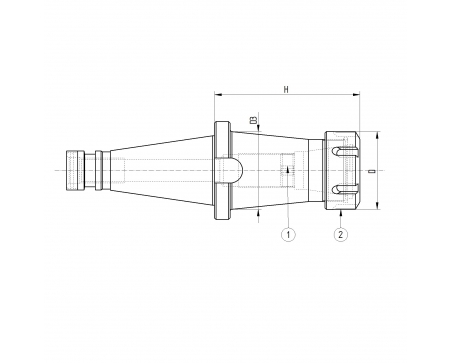

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 916GHREQ
  • GHIERA ER16 BILANCIATA STANDARD
  • 1
  • 2
  • 101001601
  • GRANO P.PIANA M10X1,5X16 FORO PAS.D4
  • 1
  • 3
  • 500100002
  • ANELLO O-RING PLASTICA X ISO50 D.i36 D.e40 h8
  • 1
Direct purchase spare parts +

550PP310

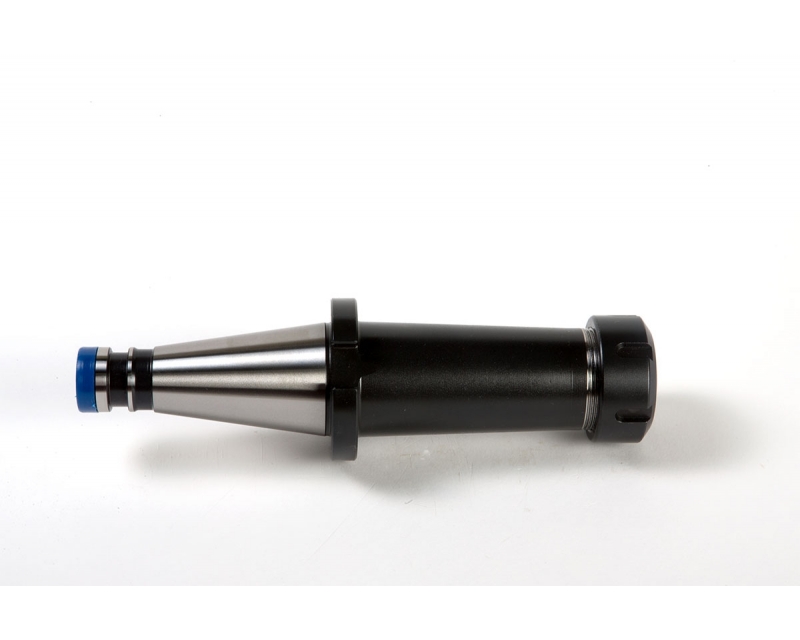

ISO50 DIN2080 COLLET CHUCK H130 ER16

ER Collet Chuck - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO50
Typology
PP - Collet Chucks
DIN ISO
DIN6499
H
130
D
32
D3
32
Collet Type
ER16
Weight (Kg)
2.86
