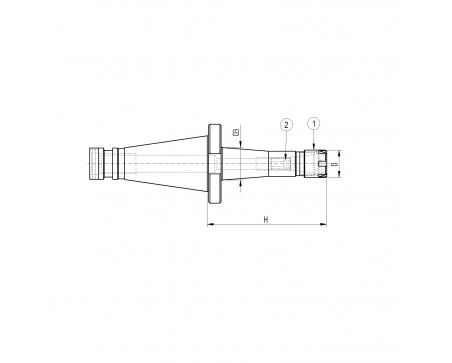

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 925GHRMN
  • GHIERA ER25 MINI
  • 1
  • 2
  • 101815801
  • GRANO M18X1,5X8 CH.5 PASSANTE
  • 1
  • 3
  • 500100002
  • ANELLO O-RING PLASTICA X ISO50 D.i36 D.e40 h8
  • 1
Direct purchase spare parts +

550PM216

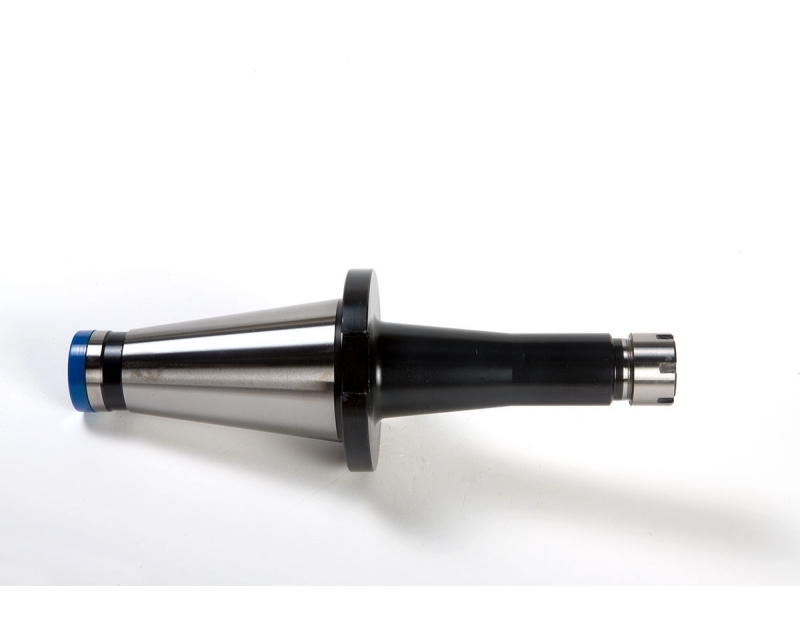

ISO50 DIN2080 COLLET CHUCK H.100 ER25MINI

ER Mini Collet Chuck - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO50
Typology
PM - ER Mini Collet Chucks
DIN ISO
DIN6499
H
100
D
35
D3
30
Collet Type
ER25MINI
Weight (Kg)
2.87
