SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 940TSL11
  • TASSELLO 16X22,5X24
  • 2
  • 2
  • 110602001
  • VITE 12.9 TCEI M6X20 BRUN. UNI5931 ISO4762 DIN912
  • 2
  • 3
  • 940VTC02
  • VITE TESTA A CROCE M20x30
  • 1
  • 4
  • 500100001
  • ANELLO O-RING PLASTICA X ISO40 D.i22 D.e25 H7
  • 1
Direct purchase spare parts +

540PF240

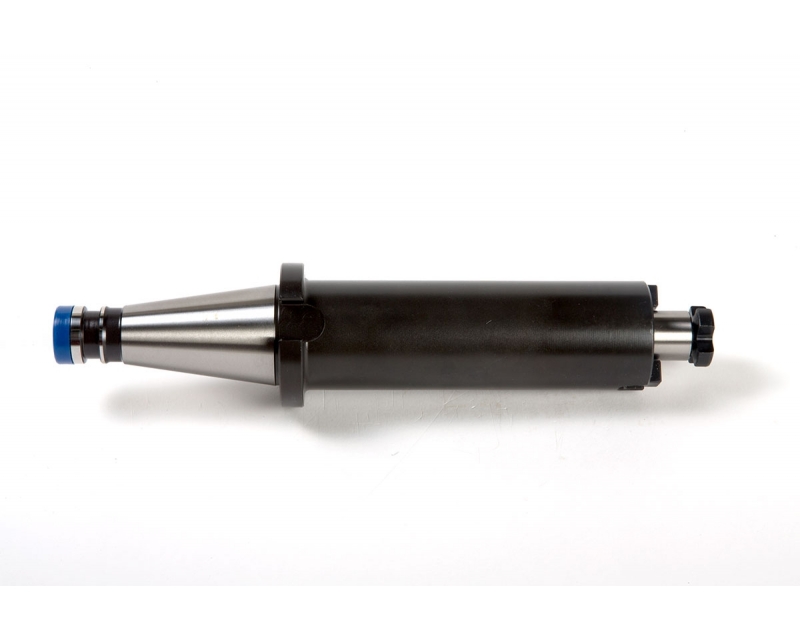

ISO40 DIN2080 SHELL MILL HOLDER H100 D.40

Shell Mill Holders-Tenons Drive - Accessories included

  • PRODUCT DETAILS

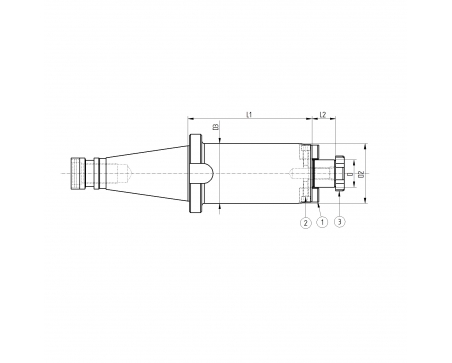

Data sheet

Taper
ISO40
Typology
PF - Shell Mill Holders
DIN ISO
ISO3937
D
40
D2
88
D3
61
L1
100
L2
27
Weight (Kg)
3.5
