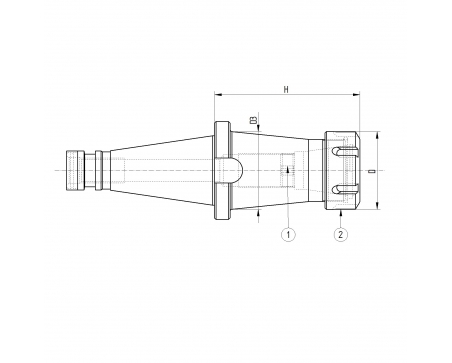

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 940GHREQ
  • GHIERA ER40 BILANCIATA STANDARD
  • 1
  • 2
  • 103015901
  • GRANO INTERNO M30X1,5X10
  • 1
  • 3
  • 500100002
  • ANELLO O-RING PLASTICA X ISO50 D.i36 D.e40 h8
  • 1
Direct purchase spare parts +

550PP226

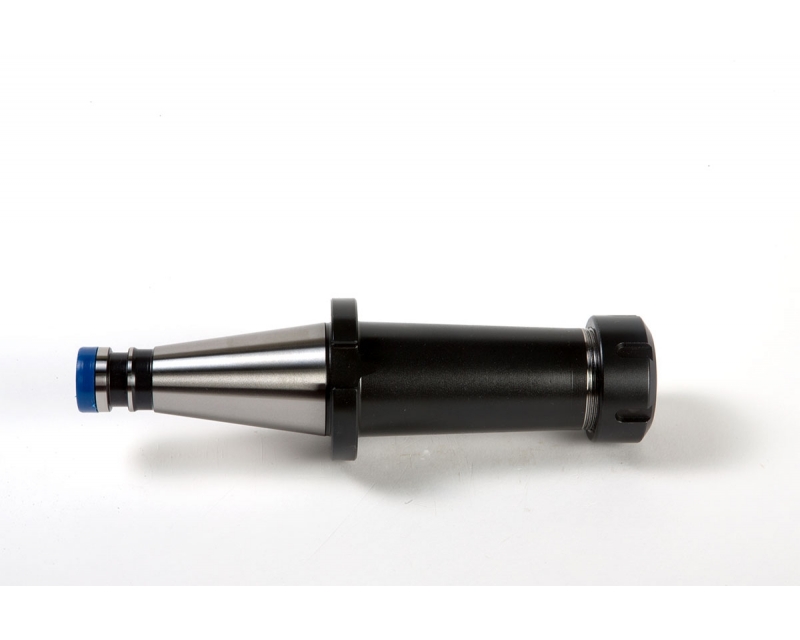

ISO50 DIN2080 COLLET CHUCK H100 ER40

ER Collet Chuck - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO50
Typology
PP - Collet Chucks
DIN ISO
DIN6499
H
100
D
63
D3
50
Collet Type
ER40
Weight (Kg)
3.51
