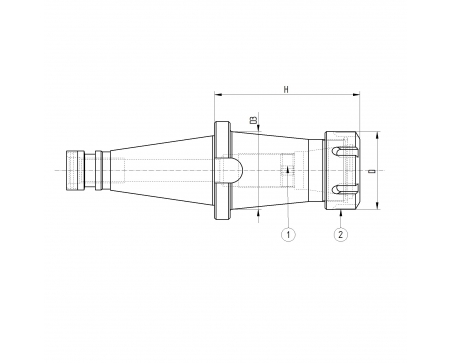

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 932GHREQ
  • GHIERA ER32 BILANCIATA STANDARD
  • 1
  • 2
  • 102215901
  • GRANO M22X1,5X9 CH 5 PASSANTE A0501014 (GRANO PER P/P)
  • 1
  • 3
  • 500100002
  • ANELLO O-RING PLASTICA X ISO50 D.i36 D.e40 h8
  • 1
Direct purchase spare parts +

550PP520

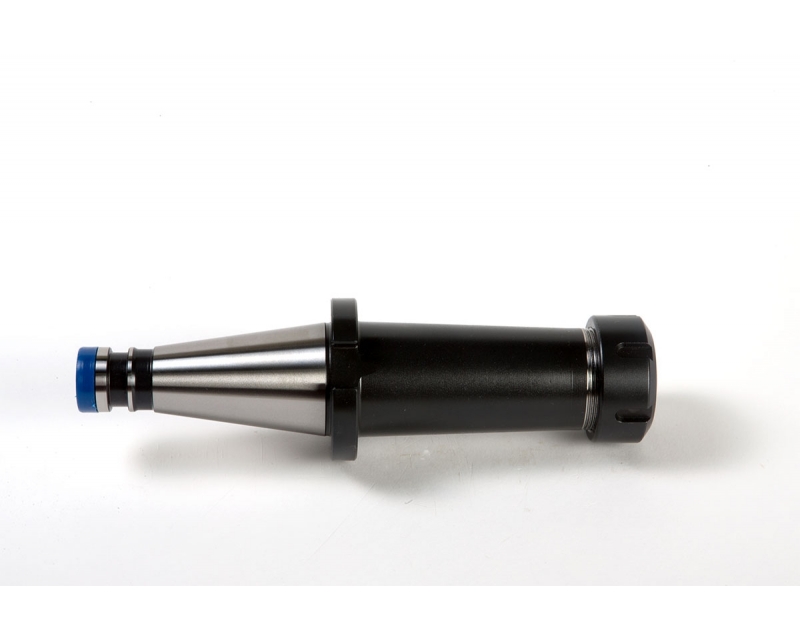

ISO50 DIN2080 COLLET CHUCK H200 ER32

ER Collet Chuck - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO50
Typology
PP - Collet Chucks
DIN ISO
DIN6499
H
200
D
50
D3
50
Collet Type
ER32
Weight (Kg)
4.16
