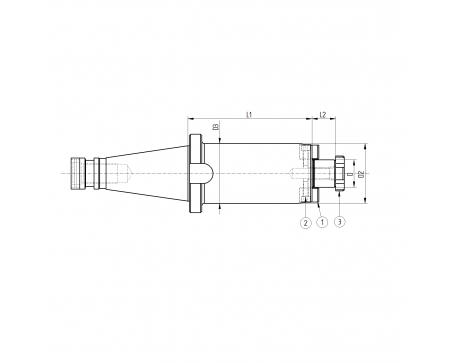

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 932TSL11
  • TASSELLO 14X15X21
  • 2
  • 2
  • 110602001
  • VITE 12.9 TCEI M6X20 BRUN. UNI5931 ISO4762 DIN912
  • 2
  • 3
  • 932VTC02
  • VITE TESTA A CROCE M16x26
  • 1
  • 4
  • 500100002
  • ANELLO O-RING PLASTICA X ISO50 D.i36 D.e40 h8
  • 1
Direct purchase spare parts +

550PF332

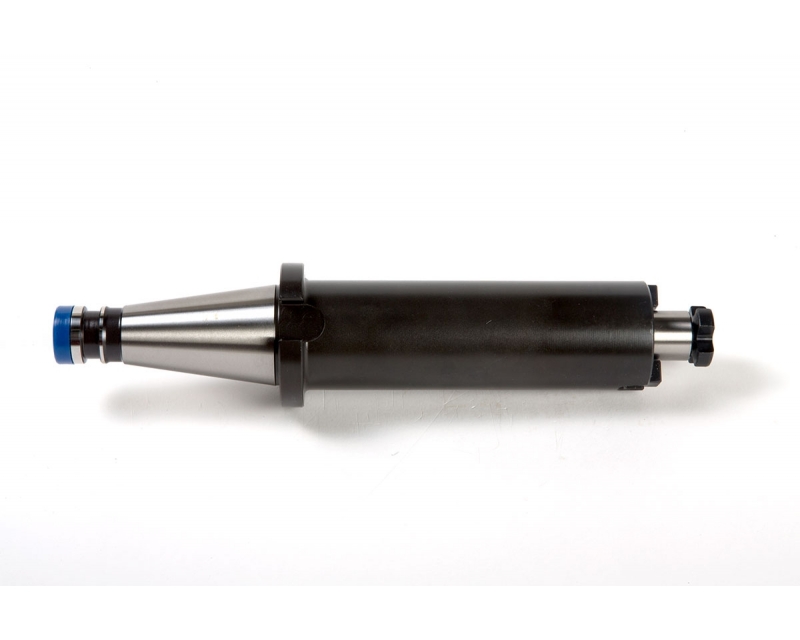

ISO50 DIN2080 SHELL MILL HOLDER H130 D.32

Shell Mill Holders-Tenons Drive - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO50
Typology
PF - Shell Mill Holders
DIN ISO
ISO3937
D
32
D2
66
D3
66
L1
130
L2
24
Weight (Kg)
6.07
