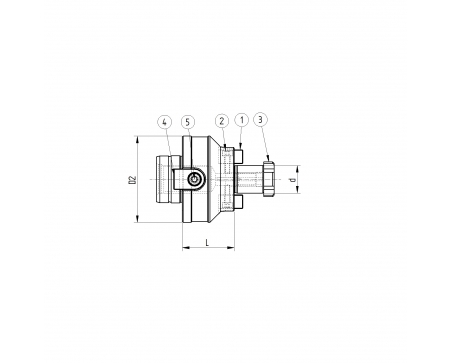

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 916TSL01
  • TASSELLO 8X8X14
  • 2
  • 2
  • 110301001
  • VITE 8.8 TCEI M3X10 BRUN. UNI5931 ISO4762 A0502006
  • 2
  • 3
  • 916VTC02
  • VITE TESTA A CROCE M8x16
  • 1
  • 4
  • 927TSL03
  • TASSELLO 12X10X18
  • 1
  • 5
  • 110401201
  • VITE 8.8 TCEI M4X12 BRUN.UNI 5931 ISO 4762
  • 1
Direct purchase spare parts +

VL5PF116

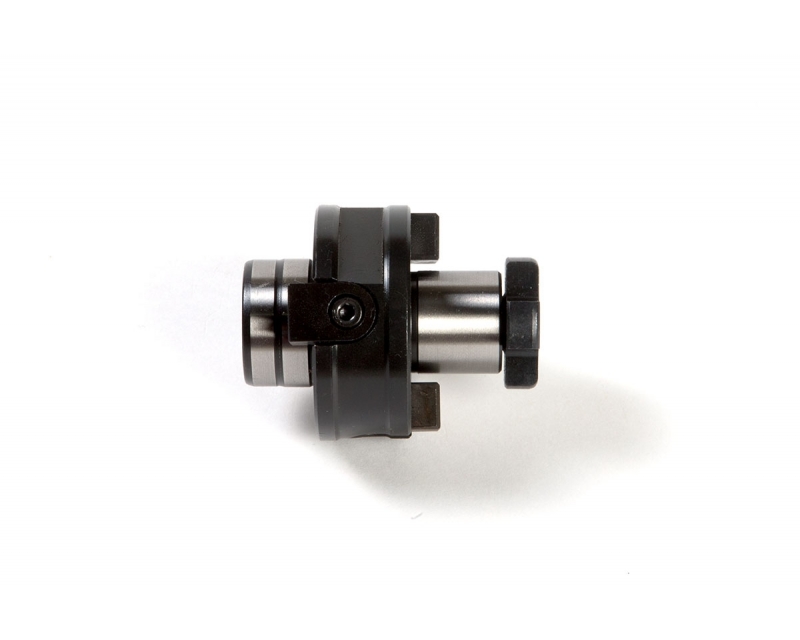

MODULAR FACE MILL HOLDER D50 D.16 H-30

Shell Mill Holder Adapters - Accessories included

  • PRODUCT DETAILS

Data sheet

Typology
PF - Shell Mill Holders
D
16
d
16
D2
50
L
30
Weight (Kg)
0.46
