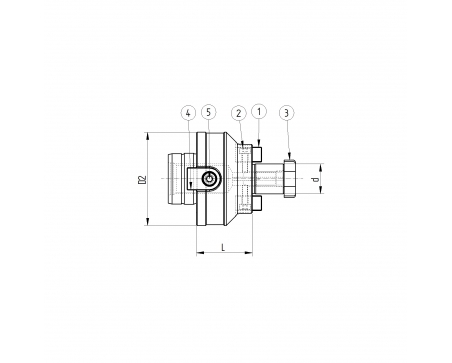

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 927TSL01
  • TASSELLO 12X12X18
  • 2
  • 2
  • 110401201
  • VITE 8.8 TCEI M4X12 BRUN.UNI 5931 ISO 4762
  • 2
  • 3
  • 927VTC02
  • VITE TESTA A CROCE M12x22
  • 1
  • 4
  • 940TSL01
  • TASSELLO 16X16X25
  • 1
  • 5
  • 110601601
  • VITE 8.8 TCEI M6X16 BRUN. UNI5931 ISO4762 A0502005
  • 1
Direct purchase spare parts +

VL8PF127

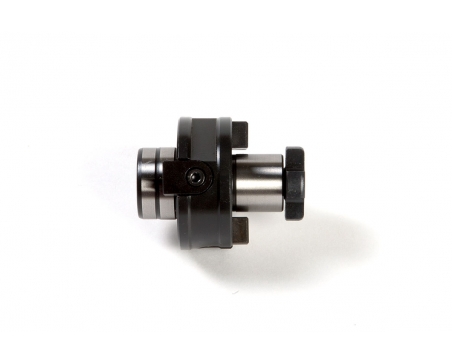

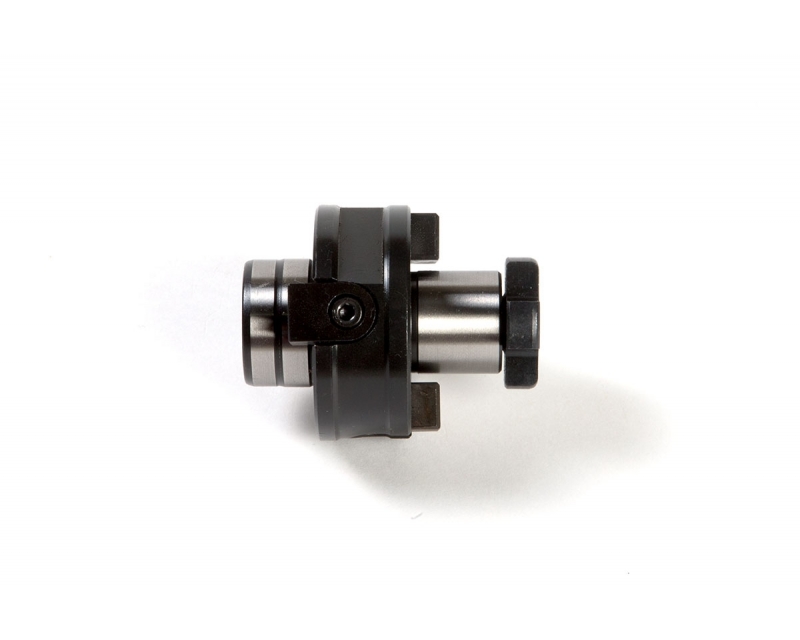

MODULAR HOLDER D80 P/FRESA D.27 H-30

Shell Mill Holder Adapters - Accessories included

  • PRODUCT DETAILS

Data sheet

Typology
PF - Shell Mill Holders
D
27
d
27
D2
80
L
30
Weight (Kg)
1.27
