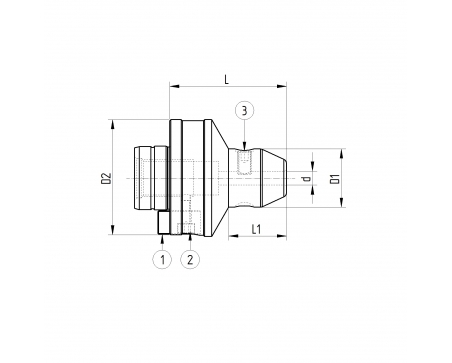

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 927TSL03
  • TASSELLO 12X10X18
  • 1
  • 2
  • 110401201
  • VITE 8.8 TCEI M4X12 BRUN.UNI 5931 ISO 4762
  • 1
  • 3
  • 101401602
  • GRANO P. COPPA M14X16 BRUNITO DIN916 ISO4029 UNI5929 15929014016B
  • 1
Direct purchase spare parts +

VL5WLD18

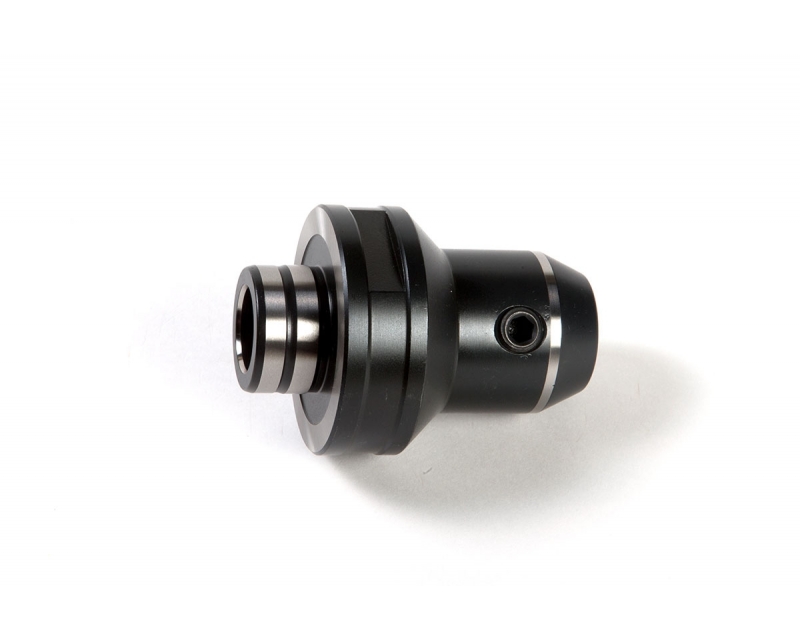

MOD. D50 WELDON TYPE D.18 H-60

Modular Adaptor For Weldon Toolholders - Accessories included

  • PRODUCT DETAILS

Data sheet

Typology
WLD - End Mill Holders Weldon Type (Standard)
DIN ISO
DIN1835B
D
18
d
18
D1
50
D2
50
L
60
L1
45
Weight (Kg)
1.33
