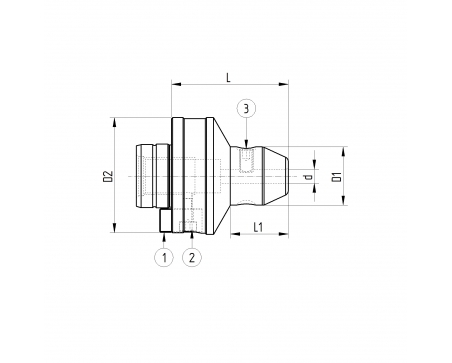

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 940TSL06
  • TASSELLO 16X14X25
  • 1
  • 2
  • 110601201
  • VITE 8.8 TCEI M6X12 BRUN. UNI5931 ISO4762
  • 1
  • 3
  • 102002002
  • GRANO M20X2X20 BRUN A DISEGNO MATERIALE : AVPB
  • 2
Direct purchase spare parts +

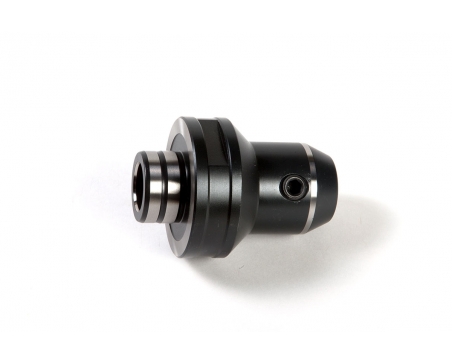

VL6WLD32

MOD. D63 WELDON TYPE D.32 H-80

Modular Adaptor For Weldon Toolholders - Accessories included

  • PRODUCT DETAILS

Data sheet

Typology
WLD - End Mill Holders Weldon Type (Standard)
DIN ISO
DIN1835B
D
38
d
38
D2
63
D3
63
L
80
L1
64
Weight (Kg)
1.67
